HCP - Model AFC Series -Submersible Cutter Pumps

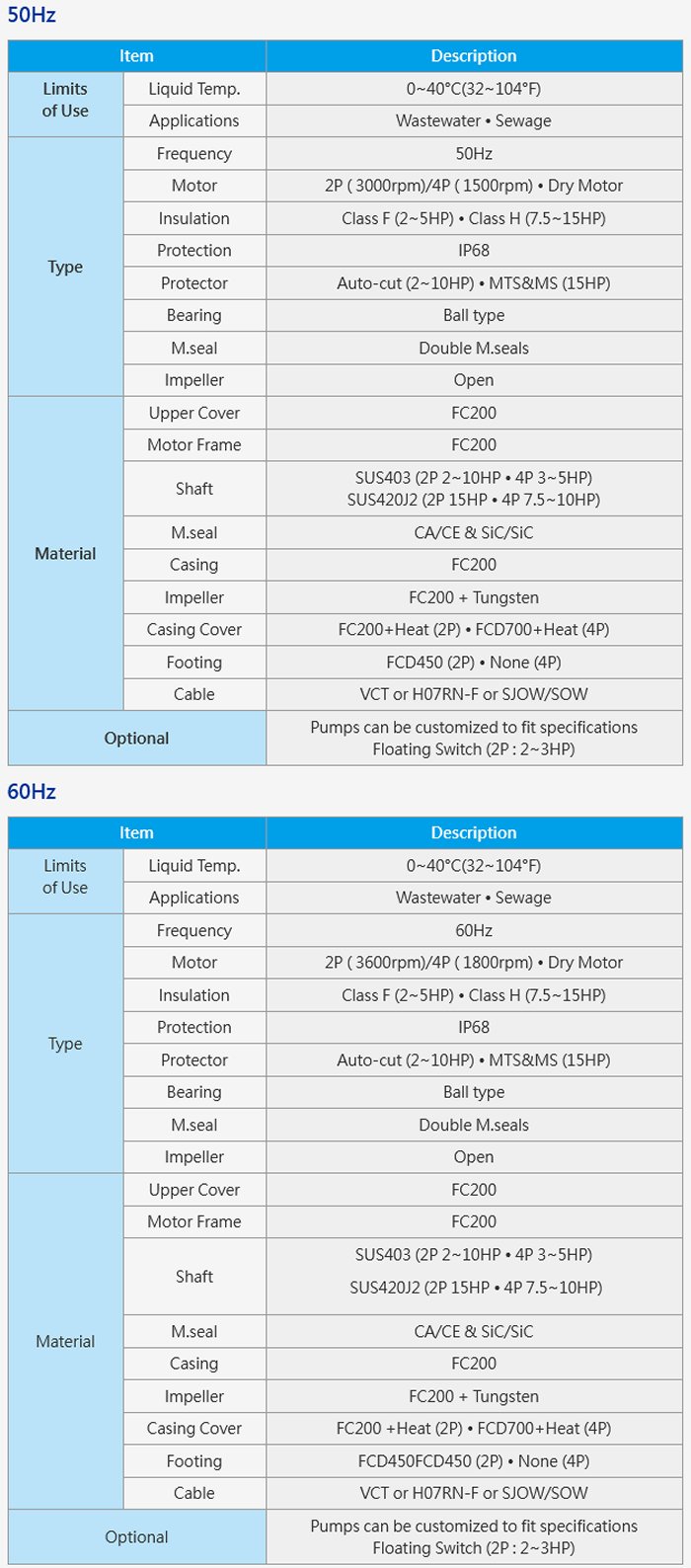

The AFC Series Submersible Cutter Pumps from HCP are designed for effective wastewater management and sewage disposal. Featuring a tungsten carbide edged impeller, these pumps efficiently handle sewage and break or tear debris, making them suitable for heavy-duty applications. Key specifications include a motor frequency of 50Hz or 60Hz, motor rotational speeds of 3000rpm for 2-pole and 1500rpm for 4-pole configurations, and thermal class insulation of F for engines between 2 to 5 HP and H for engines from 7.5 to 15 HP. In terms of durability, the pumps come with a class IP68 protection rating, double mechanical seals, and are crafted from heavy-duty casted iron with high solids epoxy coating.Most popular related searches
submersible cutter pump
cutter pump
water treatment plant
tungsten carbide
epoxy coating
submersible pump
sewage management
sewage disposal
septic tank
sewage tank
- Tungsten carbide edged impeller is perfect for pumping sewage and breaking / tearing debris.
- Standard accessories include : cable with an epoxy resin sealed water-resistant cable base, Auto-cut motor protector, double mechanical seals and oil seal design.
- Standard accessories include : cable with an epoxy resin sealed water-resistant cable base, Auto-cut motor protector, double mechanical seals and oil seal design.
- Casted iron body pump with 100~150μm high solids epoxy coating.
- Drainage of waste water containing debris from factories.
- Sewage management, water accumulation, septic tanks, and or farms.
- Drainage of waste water from attenuation, purifying and sewage tanks in water treatment plant.
