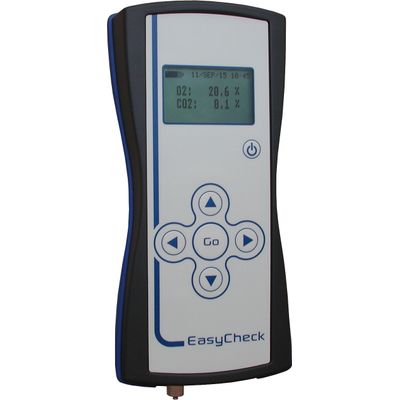

EasyCheck - Head Space O2 / CO2 Analyser

• EasyCheckONE: measure of O₂
• EasyCheckTWO: measure of O₂ / CO₂

• Oxygen [O2]
• Carbon Dioxide [CO2]

• Simple, intuitive handling
• Simple transfer and analysis of measured data
• Alarm and data logger suitably pre-configured for every kind of quality control
• Simple cleaning and long service life thanks to robust design
• Safe handling due to ergonomic concept
• Simple set-up using included data logger software
• O2, CO2 and N2 display
• Low volume of sample gas required for measurement.
• Integrated measurement memory stores the last 1000 measurements
• Measured data can be processed in MS-Excel at any time
• Cordless and mobile due to battery operation
• USB port for easy data transfer and battery recharging
• Simple one-handed operation
• Large, clear illuminated graphic display

Performance

• Measuring Principle O2: electrochemical cell ; CO2: NDIR
• Range 0-100% O2 ; 0-100% CO2
• Resolution 0.1%
• Measuring Time Standard ~ 10 sec.
• Sample Volume Standard < 10 ml
• Calibration Simple 2-points calibration
• Measurement Automatic by needle with integral pump
• Memory Memory for 1000 measurements
• Interface USB port
• Estimated Sensor Life O2: max. 2 years in Air ; CO2: min. 5 years (depending on ambient conditions
• Software EasyCheck data logger software
• Temperature Gas / Ambient 5-40°C
• Display Backlit graphic display
• Shutdown Automatic when not used for 2 minutes
• Housing Shock-resistant plastic
• Weight Approx. 425 gr. (without accessories)
• Dimensions (H x W x D) 187 x 106 x 91 mm
• Power Supply Integrated battery (charger included)
• Battery Charger 110-240 VAC
• European Compliance
• Low Voltage Directive 2014/35/EU
• EMC Directive 2014/30/EU
