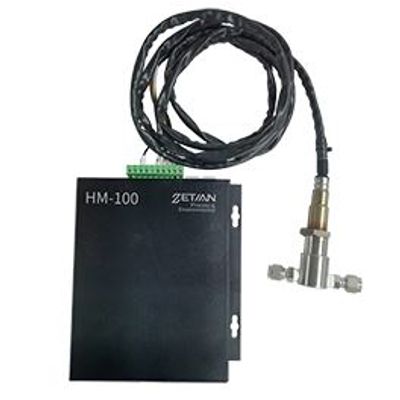

Zetian - Model HM-100(III) -Heat Tracing Hygronom Analyzer (Dry & Wet Oxygen)
HM-100(III) Heat Tracing Hygronom adopts advanced Dry & Wet Oxygen Technology. It is equipped with solid state electrolytic ceramic sensing system and the core sensor adopts high temperature resistance design (maximum temperature can reach 900?). It can work in high temperature for a long term. The product owns advantages of high temperature resistance, high measurement accuracy, strong corrosion resistance, fast response and stable performance, etc. It can be installed inside heating box of CMES (hot wet) or cabinet of CEMS (cold dry) for online continuous measurement of humidity and oxygen in different working conditions.
Most popular related searches
dust emissions monitoring
emissions monitoring
humidity measurement
high-temperature monitoring
emissions monitoring analyzer
monitor humidity
dust emissions
sample gas
flue gas
dust control
- Adopt imported sensor, with long service life
- Sensor uses special material, with better corrosion resistance
- Humidity and oxygen can be monitored simultaneously
- Integrate pressure compensation; measurement is free from interference of pressure change
- Integrate temperature protection to prevent cold boot of sensor and cause damage
- Output percentage of humidity and oxygen volume
- Support external trigger function; humidity and oxygen can be calibrated at site
- It can be applied in humidity measurement and control in various industries including printing & dyeing, ageing, drying, tobacco, wood, paper-making, chemicals, pharmaceuticals, fiber, textile, vegetable &food processing, etc. Matched with CEMS, it can also be used in occasion of dust emission monitoring, monitoring & control in desulphurization & dust removal process of flue gas, etc.
- Measurement principle: Dry & Wet Oxygen Technology
- Concentration range: H2O: 0~40 (VOL), , O2: 0~25(VOL),
- Measurement accuracy: H2O: ±1.5% F.S., O2: ±1.0% F.S.
- Repeatability: ±1.0% F.S.
- Response time:<20s (T90)
- Installation method: installed inside cabinet
- Sample gas temperature: 0~500℃
- Pressure compensation: external auto pressure compensation
- Power supply: 24VDC, 30W
- Output interface: 4-20mA, 0-5V, 0-10V (selectable)
- Serial port communication: support 485/Modbus protocol
- Calibration trigger: support 2 ways of external trigger
