Edmund-Bühler - Model GLA 2 -Heat Zone Furnace

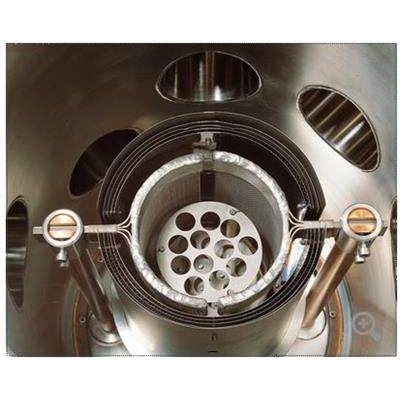

Long-term heat treatments of alloys and compounds in high vacuum or inert gas. Double-walled, water-cooled high vacuum chamber with tungsten heating elements and heat shields. Max. temperature: 2400°C. Pyrometric temperature measurement (option). Incl. power and control cabinet.
Most popular related searches
water cooling
current transformer
material science
furnace
temperature monitoring
control cabinet
cooling water
- Rapid cooling after heat treatment (e.g. in liquid gallium)
- Dimensions of heating element: ø 38 mm x 100 mm high
- Max. permissible temperature: 3000°C
- Max. long-term operating temperature: 2400°C
- Interface: RS 232
- Connection: 230 V, 50/60 Hz 400 V, 3-ph, 50/60 Hz (high-current power unit)
- Safety features: Automatic cut-off in case of: Interruption of the water cooling, Over-temperature, Thermal overload of the high-current transformer
