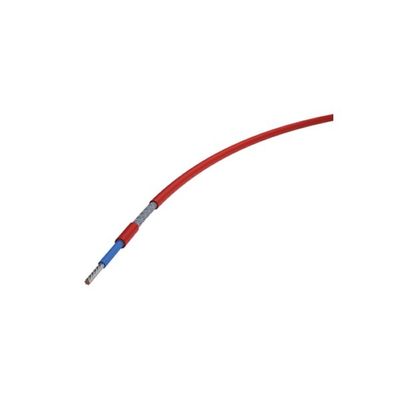

nVent RAYCHEM - Model XPI Series -Heating Cable, High Temperature, 4 J
FromnVent
nVent RAYCHEM XPI polymer insulated (PI) series trace heating cables provide freeze protection and process temperature maintenance on long transfer lines, vessels and instrumentation lines. XPI: up to 260°C continuous and 300°C intermittent exposure. Can be used in both hazardous and safe environments.
Most popular related searches
- Fast installation: very flexible cable and easy termination components
- Safe and efficient in operation: stabilised electrical insulation by controlling cold flow
- Reliable during long life: hybrid PTFE / PFA construction reduces internal mechanical/thermal stress buildup, 4 J impact resistance, 10 year product warranty available
- Min Clearance20 mm
- Max Power Output35 W/m
- Max Continuous Exposure Temperature, Power Off260 °C
- Max Intermittent Exposure Temperature, Power Off300 °C
- Max Cumulative Hours for Intermittent Exposure1000 h
- Min Installation Temperature-70 °C
- Supply Voltage0 – 750 V
- Area ClassificationNon-Hazardous; Hazardous
- Outer Jacket MaterialPTFE
- ColorRed
