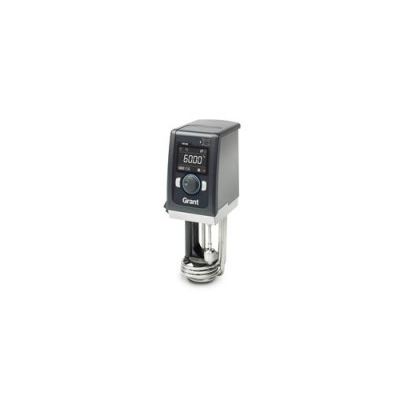

Grant - Model Optima™ TXF200 -Heating Circulator Bath
The Grant TXF200 series of digital heating circulating baths for sophisticated applications requiring complex programming and/or ultra-precise temperature control in the range of -15°C to 200°C.
Most popular related searches
heated circulating bath
heating circulator
digital temperature controller
laboratory water bath
pump connector
laboratory thermostat
temperature probe
material testing
material testing research
tube pump
The TXF200 heating circulator can be used in combination with any Grant stainless steel or with a T-CLAMP for independent use of virtually any vertical sided tank.
- Cooling/heating range -15°C to 200°C
- Cooling achievable with optional immersion cooler (see accessory options)
- Stability ±0.01ºC / Uniformity ±0.05ºC
- Tank options 5L to 38L
- Powerful integral pump for external fluid circulation
- Large, bright full colour display with a choice of 5 languages
- 5 point user calibration
- Low-liquid detection (float switch)
- Memory capacity for 10 programs with 100 segments
- Industrial labs - thermostat calibration, haze analysis (brewing), temperature probe calibration and material testing
- University research - temperature control of external equipment such as spectrophotometers and refractometers
- Circulation of temperature control fluid to jacketed vessels
- Dimensions (h x d x w) : 342 x 172 x 141mm
- Stability (DIN 12876) @70ºC : 0.01±ºC
- Uniformity (DIN 12876) @70ºC : 0.05±ºC
- Setting resolution : 0.1ºC (0.01 with Labwise®)
- Display : Full colour QVGA TFT
- Timer function : 1 minutes to 99 hours 59 minutes
- No. of temperature presets : 3
- Re-calibration points : 5
- Socket for external probe (PEP, SEP) : •
- Communications interface : USB, RS232
- Programmable : Direct via user interface or remote via PC/ laptop 10 programs/ 100 segments
- Relays : 1
- Safety - over temperature : Adjustable cut-out
- Fluid level - float : •
- Language options : EN, FR, DE, IT, ES
- Alarms (can be configured to switch a relay)High and low : High and low
- Heater power - 230V : 1840W
- Heater power - 120V : 1445W
- Electrical power - 230V : 2000 (50-60Hz)
- Electrical power - 120V : 1500 (50-60Hz)
- Height above tank rim : 200mm
- Depth below tank rim : 145mm
- Maximum pressure (water) : 530mbar
- Maximum flow (water) : 22L/min (adjustable flow rate)
- Pump connector 6mm bore : Fits 9mm inner diameter tubing
- Pump connector 11mm bore : Fits 15mm inner diameter tubing
- Weight : 2.6kg
