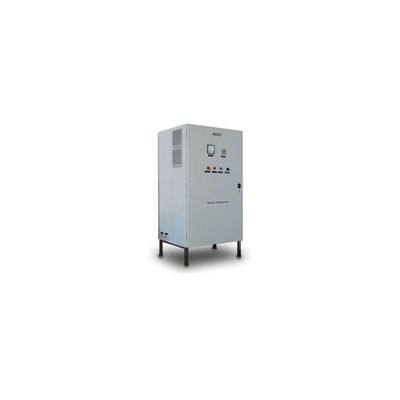

Chemozone - Heavy Commercial & Industrial Water & Wastewater Ozonator System
Chemozone heavy commercial & industrial Ozone generator is very widely & effectively used in many industrial applications for water & waste water treatment. This range of ozone generators are used in tertiary treatment of sewage & effluent treatment. CHEMOZONETM Ozone generators are specifically designed for swimming pool and cooling tower water treatment. OG/HC & OG/HI series of ozone generators are industrial grade & can operate 24 x 7 x 365. Major design advantage of these rang is their capability of producing high ozone concentration at lower operating power.
Most popular related searches
cooling tower water treatment
industrial wastewater
cooling tower water
non-return valve
industrial water
air handling system
swimming pool cooling
cooling tower treatment
cooling water treatment
water treatment
- Heavy Commercial & Industrial use where high ozone concentration is required.
- Ozone output – 10 G/Hr – 1000 G/hr
- Ozone Concentration – 70 – 140 G/m³
- Mainly used for waste water, swimming pool, cooling tower water treatment & similar water & waste water application.
- Internal & outer Ozone cell electrodes are forced water cooled.
- Make: CHEMOZONE
- Ozone Out Put: 10 G/hr – 1 kG / hr 1 6
- Ozone Concentration: 80 G/m³ - 140 G/m3 ²
- MOC of Ozone Cell: SS 316 L
- Enclosure – MOC: Carbon Steel
- Enclosure - Finish: RAL 7035, Structure Powder Coated
- Dielectric: Precision Ceramic
- Corona Discharge: 0.6 – 0.9 W/cm2
- Power Efficiency: 6.0 – 8.0 kW/Kg of O3
- Cell Electrode Cooling: Internal & External
- Cell Cooling Medium: Forced Water
- Power Supply: Switch Mode Power Supply (SMPS) 3
- Power Amplifier: IV – Generation IGBT Technology
- High Frequency Transformer: Forced Air Cooled Ferrite Core
- Indicators: Power + Stand By + Ozone ON
- Variable Ozone Control: 25 % - 100 %
- Service Indicator: Non Re-settable Hr Meter
- Operating Temperature: 15° C - 40° C
- Line Voltage: 230 V ac; 50 HZ / 110 V ac; 60 Hz
- Installation Condition: Floor / Wall
- Specified Life: 20,000 working Hrs 4
- Standard Usage: 24 x 7 x 365 – Commercial & Industrial Use
- Feed Gas: Oxygen
- Concentration: > 90 %
- Due Point: > -45° C
Power Board
- Line Voltage surge & spike
- Delayed Soft Start off
- Over temperature protection
- Over Current
- Over Voltage
- Under Voltage
- High Voltage Short Circuit
- High Voltage Open Circuit
- Feed Gas Non Return Valve
- Feed Gas Safety Interlock
- Ozone Non Return Valve
- Fail Proof Back Flow Prevention 5
- Heat Exchanger For Feed Gas 5
- Anti-corrosion lacquer coating
Enclosure
- UL - Certified
- CE - Marked
- Electricals Electronics - IP 54
- Ozone Cell - IP 65
Sensors
- Cooling Water Flow
- Cooling Fan Operation
- Feed Gas Flow
- Cooling Water Temperature
- Power IGBT Temperature
- ORP Controller Connectivity
- Air Disinfection
- Soak Disinfection
- Clean Room
- Odor destruction in Air
- Smoking Lounges
- Post Fire Odor destruction
- STP foul odor destruction
- Enhance Indoor Air Quality
- VOC reducing in Air
- Drinking & Process water Treatment
- Residential swimming pools
- Public & Olympic size swimming pools
- Pulses & Grains Soak disinfection
- Fruits & Veggies Soak disinfection
- Meat & Sea food Soak disinfection
- Processing & Packing
- Short & Long term Storage
- Cold & Deep Storage
- Commercial Laundry washer
- Denim & Fabric Bleaching
- STP & ETP Tertiary Treatment
- COD & BOD Reduction
- Cooling Tower Water Treatment
- Research & Development (R & D)
- Air Handling Units (AHUs)
- Dairy
- Aquaculture
- Garment
- Hospitals, OT, ICU
- Housekeeping
- Hotels, Restaurants, Resorts
- Corporate Building
- Pharmaceuticals
- Malls & Theaters
- Food Processing
- Beverage
- Packing & Storage
- Clean Rooms
- Electronics
- Dairy
- Agriculture
- Textile & Garment
- Leather & Tanneries
- Cooling Towers
- Fruit & Veggies
- Meat & Sea Food
- Domestic Waste Water
- Industrial Waste Water
- Laundry Waste Water
- Re cycling of liquid Waste
- Paper & Pulp
- Power Plants
- Steel Plant
