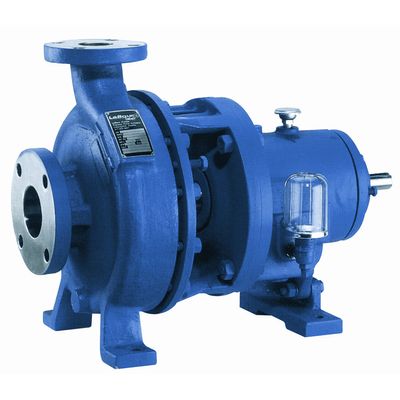

Peerless FireConnect LaBour - Model LVA - ANSI B73.1 -Heavy Duty ANSI Standard Process Pump
The LaBour LVA is a robust ANSI-standard process pump designed to meet demanding industrial applications, featuring an industry-leading low Shaft Flexibility Factor (L3/D4) and the highest bearing Basic Dynamic Load Rating. It’s engineered for prolonged operational lifespan exceeding 100,000 hours, supported by a Flinger oil lubrication system. Engineered for handling a variety of aggressive process liquids, the LVA pump is versatile across multiple industries including agriculture, chemical, and petrochemical. With capacities reaching up to 4000 US gallons per minute, and operating under pressures up to 350 psi, the pump demonstrates its effectiveness. It is compatible with various materials such as cast or ductile iron, stainless steel, and exotic materials like Titanium and Zirconium, catering to a vast array of process liquids. This pump is adaptable for use with electric motors, steam turbines, diesel, and more, making it a flexible solution for both standard and complex requirements.Most popular related searches
process pump
ANSI pump
lubricant system
chemical transfer
sealing system
impeller pump
oil mist
acid water
acidic water
pressure seal
Heavy duty design ANSI pump, available in a wide range of metallurgies. Standard design includes lowest “Shaft Flexibility Factor (L3/D4)” in the industry, highest bearing “Basic Dynamic Load Rating”, power end L10 life in excess of 100K hours and “Flinger” oil lubrication system.
- The LVA casing is a self venting, top cenerline discharge with a fully confined gasket.
- Dual oil level monotoring systems; “Bullseye Sight Glass” and clear “Trico® Optimatic” constant level oiler.
- Two heavy duty, back-to-back mounted, 7300 series, angular contact bearings, providing an industry leading L10 life in excess of 100,000 hours.
- Largest shaft diameter (D) and shortest impeller overhang (L), resulting in the lowest “Shaft Flexibility Factor (L3/D4)” in the industry.
- Flinger type lubrication system creates a constant oil mist cascading over the radial & thrust bearings, resulting in cooler running bearings than other manufacturers flooded lubricated bearings.
- Integral impeller pump out vanes reduce stuffing box pressure, extending mechanical seal and bearing life.
- A Low Flow Impeller is available for select sizes of Pump Group I, II & III pumps. This Low Flow Impeller helps extend MTBF for those applications operating close to shut-off on a standard pump.
The LVA ANSI-standard pump will handle corrosive, toxic and abrasive process liquids such as acids, bases and solvents.
- Agriculture
- Chemical Transfer
- Petro-Chemical
- Pulp & Paper
- Plastics
- Refining
- Pharmaceutical Plants
A wide range of alloys, options and sealing systems makes it an ideal choice for almost any application.
- Capacities: Up to 4000 USGpm (900 m3/hr )
- Head: Up to 728 feet (222 meters)
- Pressure: Up to 350 psi (2414 kPa)
- Horsepower: Up to 275 hp (205 kW)
- Temperature: Up to 500 °F (to 260°C)
- Drives: Electric Motors, Steam Turbines, Diesel, PTO, VFD, Belts…
- Liquids: Liquors, alcohols, combustibles, fertilizers, acids, bases, water
- Materials: Cast or Ductile iron, 316SS(L), 304SS(L), Elcomet K, A48, 317SS, R55, Monel, Nickel, Hastelloy(s), Titanium, Zirconium, plus most machinable alloys.
