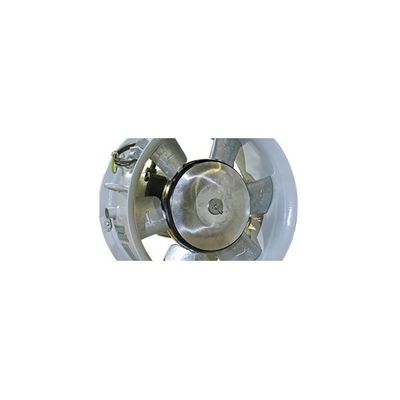

Jetstream - Model AMF Series -Heavy-Duty Axial Fans
Jetstream Axial Mine Fans (AMF Series) are heavy-duty axial fans designed specifically for main mine ventilation. These robust adjustable-pitch fans have been designed to deliver up to 1 million CFM against 14 inches total pressure. Ranging in sizes from 76 1/2" to 148", this fan line delivers high efficiency and reliable service.
Most popular related searches
axial fan
mine ventilation
mining fans
ASTM A36
pressure sensor
gaskets
Thermocouple sensor
thermocouple
flow sensor
RTD sensor
- These robust adjustable-pitch fans have been designed to deliver up to 1 million CFM against 14 inches total pressure. Ranging in sizes from 76 1/2" to 148", this fan line delivers high efficiency and reliable service.
- Highly reliable
- Easy to maintain
- Economical price
Structural
- ASTM A36 steel all welded construction.
- Structural steel bracing, stitch welded to housing.
- Bolted and gasketed splits for removal of wheel and shaft assembly on horizontally installed units and splits for field welding, as required for shipment.
- Designed to meet strict vibration requirements.
- Vertical and horizontal installations.
Shaft
- C 1045 alloy steel shaft.
- Shaft designed for a minimum first critical speed ratio of 1.25.
Motor Base
- 4-Way adjustable base with jacking bolts. Heavy plate construction sized to suit selected motor.
Fan Monitoring Equipment
- 100 OHM, 3 wire platinum bearing RTDs.
- Flow and pressure sensors.
- Thermocouples.
- Vibration transducers.
