Intimus International GmbH

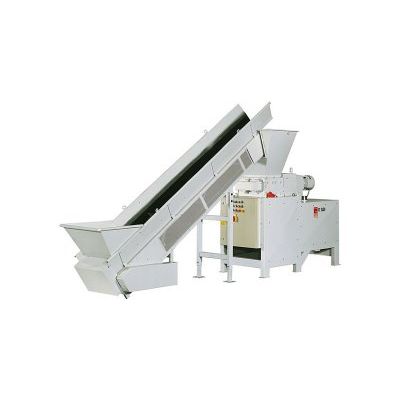

intimus - Model VZ 17.00 -Heavy Duty Shredding Systems Without Magnetic Separator
A modular system for customised solutions: High performance shredders for professional use in waste management, high throughput from 600 up to 2,100 kg/h with low energy consumption, security level 3 resp. 4 per DIN 32757-1 with certificate, minimal personnel requirements thanks to fully automatic operation, system components, as well as configuration and expansion by means of a modular concept, allow for adaption to your individual requirements. Extensive assortment of accessories available on request.
Most popular related searches
shredding system
pre-shredder
waste management
magnetic separation
shredder
belt conveyor
conveyor shredder
- SPS control with display
- Auto Stop/Reverse/Restart
- Conveyor belt with pre-shredder
Specifications
- Cutting size paper (mm): 7,8 x 15-55 mm
- Security level DIN 32757-1: 3
- Security level DIN 66 399: P-2 / O-2 / T-2 / E-2
- Motor Power kW: 15,8 kW
- Supply voltage (Volt): 400 Volt
- Weight gross (kg): 2510 kg
- Weight net (kg): 2280 kg
- Actual through-put (kg/h): 650
- Dimensions In-Line set-up (L/W/H): 520x100x270
- Dimensions Angular set-up 90°: 420x220x270
