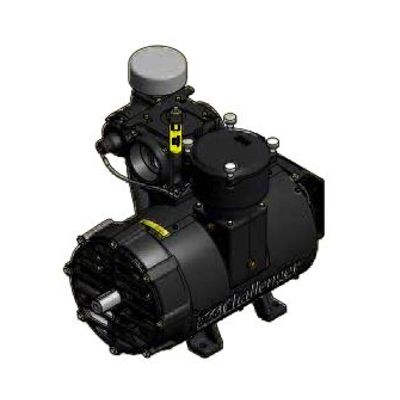

NVE ChallengerModel 866 -Heavy Duty Vacuum Pumps

SHARE

Features: Lifetime warranty on the housing against cracking. Ductile iron housing. The NVE bi-rotational, four port oil pump is exclusive to our "oil management system" delivering the precise amount of oil required for any job. Easily adjustable to 5-24 ounces per hour. Rugged braided stainless steel oil delivery lines. Vane flush port with valve. Vane wear inspection port. Integral, easily accessible & cleanable, stainless final filter. Proven crash protection allowing all major components to survive a catastrophic failure. Multiple drive options (gearbox, belt, hydraulic, and direct). Two year warranty against manufacturer defect. Designed, built, and supported in the USA.

Most popular related searches
  • Air Flow - Free Air 520 CFM
  • Maximum Vacuum
  • Maximum Intermittent Pressure 20 PSI
  • Operating Range - Rpm 1000
  • HP Required @ Full Vacuum  25
  • HP Required @ 20 PSI 38
  • Porting Size 4"
  • Shaft Size (3/8" Key) 13/4"
