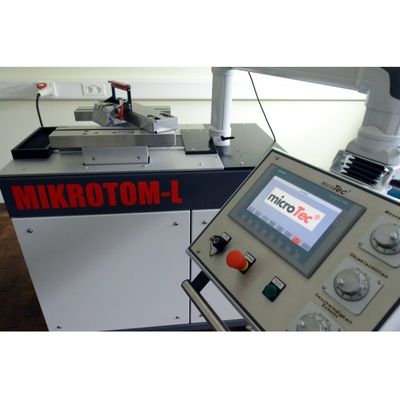

microTec - Model MICROTOME-L -Heavy Sledge Microtomes
Section thickness ranging from 1 to 1,000 μm, adjustable in 1 μm intervals. Sectioning speed ranging from 1 to 125 mm/s, continuously adjustable. Vertical knife stroke distance: 70 mm. Knife retraction: freely adjustable from 100 to 2,000 µm. Knife clearance angle adjustment freely configurable from 0° to -25°. Knife declination freely configurable in both ways from 90° to 135°. Freely configurable collision protection level. Trimming function for fast trimming of samples with free configurable trim values. Individual sectioning window with freely programmable front and rear starting and finishing points. Manual knife movement via touchscreen or electronic handwheel. Possible direct knife clamping without knife holder.
OBJECT / SAMPLE
- Maximum sample size (incl. clamping device): 180 x 160 x 70 mm
- Sample orientation: rotatable 360° and inclinable ± 5° on the x-/y-axis
- Reversing speed ranging from 1 to 125 mm/s, adjustable in 1-mm/s-intervals
- Manual moving of samples using an electronic hand wheel (sectioning speed can be adjusted using an incremental encoder/potentiometer)
- Mounting of the sample clamping device via magnet or T-shaped grooved plate
- Clamping devices fast and easy changeable through adaption
- Clamping devices available in different sizes and shapes (custom products possible)
CONTROL / DRIVE UNITS / PORTS
- Rated voltage: 400 V, 16 A
- Rated current: 6.3 A
- Rated frequency: 50 Hz
- Power input: 1.5 kW
- Total power consumption: max. 1,500 VA
- Fuse: 16 A
- A separate drive unit for knife and object movement
- Three sectioning functions: button activated, single and continuous
- Intuitive operation via touchscreen, electronic handwheels and potentiometer
- Potentiometer for infinitely variable control of sectioning speed, even during sectioning process
- Footswitch with start and emergency stop function
- Automatic emergency stop at point of collision
- 220 V power sockets for additional device / illuminated magnifier remote connector
DIMENSIONS / WEIGHT
- Dimension Mikrotom-L: 990 x 550 x 950 mm
- Dimension control panel: 400 x 470 x 150 mm plus telescopic arm
- Working height (without clamping device): 950 mm
- Required installation space: 1,400 x 1,300 mm
- Total weight: 420 kg
STANDARD FEATURES
- Illuminated large-field magnifier (162 x 105 mm) with 3 diopters and 2 lighting levels (220V P20)
- Footswitch with start and emergency stop function
- Control Panel with 9-inch Siemens touchscreen, two electronic handwheels and potentiometer, can be positioned to the left or right of the device
- Control unit can be supplied in any language (multi-lingual)
ACCESSORIES
- Large selection of different knife holders and clamping devices for various requirements available
- Special solutions and custom products through association with tool manufacturer on demand
- Knives out of high-performance steel and carbide
- More Information at Accessories
