Hedland - Basic Air and Compressed Gas Meters

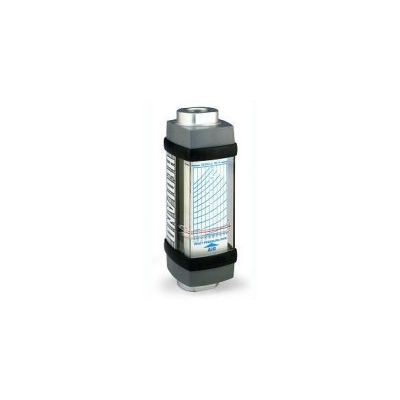

Basic Flow Meter; Flow ranges: 0.5 - 5.0 SCFM (0.2 - 2.2 L/SEC). up to 200 - 2200 SCFM (75 - 1130 L/SEC). Construction: Aluminum, brass and T303 stainless steel. Sizes: 1/4 to 3 inch ports. Ports: SAE, NPTF and BSPP. Pressure up to 1,000 psi (69 bar) maximum. Temperature up to 240 °F (116 °C). Accuracy ±2% full scale. Repeatability ±1%. Standard calibration: 1.0 specific gravity. Direct reading. Install in any position. 360° rotatable guard/scale. Easier to read linear scale. No flow straighteners or special piping required. Relatively insensitive to shock and vibration.
