HEF - Model COD 11 -Bearings

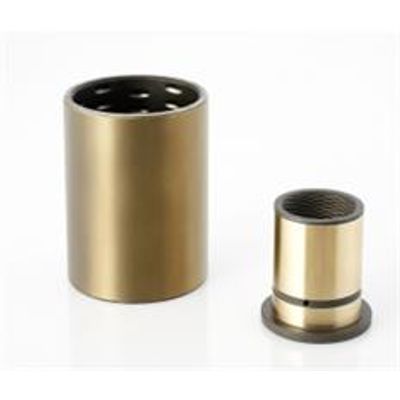

COD 11 bearings are manufactured from a copper aluminum alloy with excellent resistance to oxidation, to seizure and wear thanks to a hardened surface treatment and to grease reservoirs on the contact area. Thanks to different surface topography, the intervals of lubrication on COD 11® bushing with cross hatching or COD 11® BH bushings with cavities are considerably increased. This COD 11® technology is also availiable for slide, washer, etc.
Mating Shaft:
For optimal performances of the joint, the surface roughness should be inferior to 0.8 μm Ra. Under severe working conditions, shafts hardened ≥55 HRC or ≥ 600 Hv1 are recommended.
For optimal performances, special shafts are available from HEF DURFERRIT : COD® ST, COD® STC, COD® OX, for marine applications : in sea water environment, we recommend COD® EM shafts.
- Excellent resistance to wear and seizure
- Excellent corrosion resistance
- Long greasing intervals
- Excellent distribution of the lubricant on the friction area
- Marine
- Offshore
- Steel industry
- Hydro power enery
