Heyco
Heyconnect - Terminal Bushings
FromHeyco

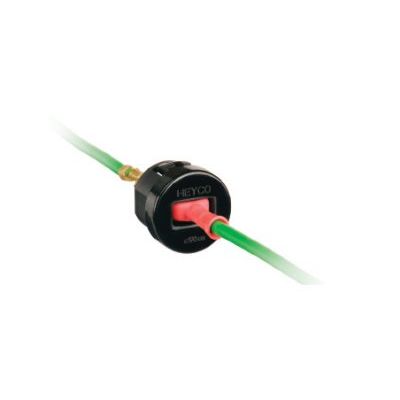

Small, snap-in nylon receptacles for low cost, insulated, quick connection or disconnection of your wires, through panels, housings or detachable shrouds. Typical uses are data processing and vending machines, motors, power supplies, and controls. Non-polarized HEYConnects feature 1/4` (6,4 mm) internal brass male terminals, to mate with standard 1/4` (6,4 mm) female Quick-Connects. Polarized HEYConnects feature 1/4` (6,4 mm) and 3/16` (4,7 mm) internal brass male terminals, to mate with standard 1/4` and 3/16` female Quick-Connects.
- Two-terminal HEYConnect bodies feature markings that correlate the terminals, front to back.
- Available in double-male and male-solder configurations.
- Rated for 300 Vac/Vdc @ 8.2 Amps.
- DFARS Compliant
- Materials : Polycarbonate
- Certifications : Recognized under the Component Program of Underwriters` Laboratories File E467283 to both Canadian and US Requirements
- Flammability Rating : 94V-0
- Temperature Range : 32°F (0°C) to 266°F (130°C)
