Hiden - Model TPD -Workstation System for UHV Temperature Programmed Desorption (TPD/TDS) Studies
The TPD Workstation features a multiport UHV chamber with heated sample stage coupled to a high precision triple filter analyser with digital pulse ion counting detector for ultimate sensitivity and time resolution.
Most popular related searches
heated sampling
thermal analysis
mass spectrometry
workstation
surface analysis
gate valve
sample heating
mass spectrometry data
spectrometer
pulse counter

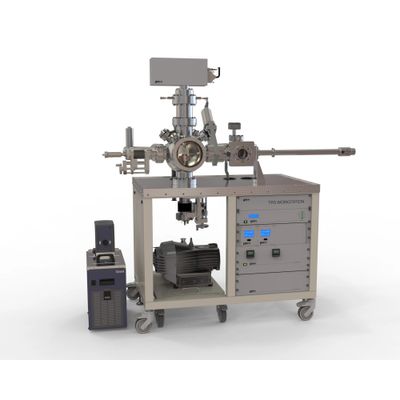

The Hiden TPD Workstation is a complete experimental system for UHV temperature programmed desorption (TPD) studies. The triple filter mass analyser is configured with a cooled shroud giving the analyser optimum sensitivity with minimum background contributions to desorption products from the sample. A fast sample load lock with sample transfer mechanism is included to provide for rapid sample change.
- Hiden 3F PIC Mass Spectrometer for fast data acquisition (>500 data points per second)
- Multiport UHV chamber for attachment of additional instrumentation (e.g. Ellipsometry)
- Linear sample transfer mechanism and loadlock, including gate valve and viewport
- Heated sample stage to 1000 °C
- Z-drive for optimum sample/detector positioning
- Bakeout Jacket (200 °C max)
- Integrated Software control of experimental protocols
- Mass range: 50, 200, 300 or 510 amu
- Mass Spectrometer: Triple Filter Quadrupole
- Detector: Pulse Ion Counter (PIC)
- Sample size: Typically 10 x 10 mm
- Minimum detectable pressure: 5 x 10-15 mbar
- Maximum operating pressure: 5 x 10– 6 mbar
- Maximum sample stage temperature: 1000 °C
- Fast measurement speed: Up to 650 measurements per second
