SBE - Model 16plus-IM V2 SeaCAT CT(D) -High-Accuracy Conductivity and Temperature Recorder

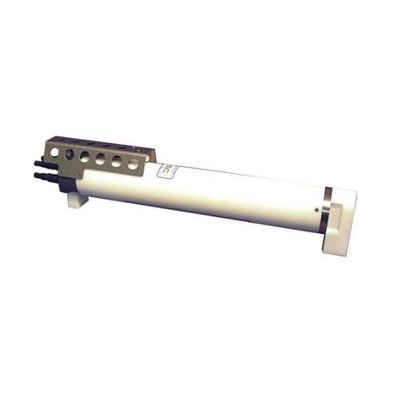

The SBE 16plus-IM V2 SeaCAT is a high-accuracy conductivity and temperature (pressure optional) recorder with Inductive Modem (IM) interface designed for long-duration deployments on moorings. It supports numerous auxiliary sensors (dissolved oxygen, turbidity, fluorescence, PAR, etc.) with six A/D channels and one RS-232 data channel. The 16plus-IM V2 has internal batteries and memory. Data is recorded in memory and can also be output in real-time in engineering units or raw HEX. Battery endurance varies, depending on the sampling scheme; nine alkaline D-cells provide power for 290,000 samples of C and T.
Most popular related searches
optical dissolved oxygen sensor
temperature recorder
strain gauge
data logger
dissolved oxygen sensor
pressure sensor
transmission data
plastic coating
conductivity cell
fouling
- Moored Conductivity, Temperature, Pressure (optional), and up to seven auxiliary sensors, at user-programmable intervals (10 seconds to 4 hours).
- Inductive Modem (IM) interface, internal memory, and internal alkaline batteries.
- Expendable anti-foulant devices and optional pump for bio-fouling protection.
- Depths to 600, 7000, or 10,500 m (data transmission rated to 8000 m).
- Seasoft V2 Windows software package (setup, data upload, and data processing).
- Next generation of the SeaCAT family, field-proven since 1987.
- Five-year limited warranty.
- Inductive Modem (IM) system provides reliable, low-cost, real-time data transmission for up to 100 IM-enabled instruments using plastic-coated wire rope (typically 3x19 galvanized steel) as both transmission line and mooring tension member. IM instruments clamp anywhere along the mooring, which is easily reconfigured by sliding and re-clamping instruments on the cable. In a typical mooring, an Inductive Modem Module (IMM) in the buoy communicates with IM instruments and interfaces to a computer/data logger (not supplied by Sea-Bird) via RS-232. The data logger is programmed to poll each IM instrument for data, and sends the data to a satellite link, cell phone, etc.
- Unique internal-field conductivity cell permits use of expendable anti-foulant devices, for long-term bio-fouling protection.
- Aged and pressure-protected thermistor has a long history of exceptional accuracy and stability.
- Optional pressure sensor with temperature compensation is available in eight strain-gauge ranges (to 7000 m) and eleven Digiquartz® ranges (to 10,500 m).
- Optional pump runs for each sample, providing improved conductivity and plumbed auxiliary sensor response, bio-fouling protection, and correlation of CTD and auxiliary sensor measurements.
- Plastic (600 m) or titanium (7000 or 10,500 m) housing (data transmission rated to 8000 m).
- XSG/AG or wet-pluggable MCBH connectors.
- No pressure, or strain-gauge or Digiquartz® pressure sensor.
- SBE 5M pump for pumped conductivity; or SBE 5P or 5T pump for pumped conductivity and auxiliary sensor(s).
- Auxiliary sensors — dissolved oxygen (SBE 63 Optical DO Sensor or SBE 43 [membrane-type] DO Sensor), fluorescence, radiance (PAR), light transmission, turbidity, etc.
- Battery pack kit for lithium batteries (batteries not supplied by Sea-Bird).
