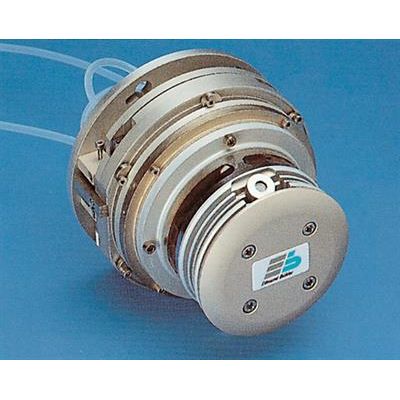

Edmund-Bühler - Model HDK S1 -High- and Low-Temperature Chamber
XRD chamber for operation in well-defined atmospheres (e.g. inert gas, N2, air, oxidative mixtures up to 1 bar) or in high vacuum down to 10-5 mbar.
Most popular related searches
type k thermocouple
X-ray diffraction
digital temperature controller
water cooling
material science
temperature chamber
sampling chamber
thermocouple
cooling water
gas mixture
- emperature range: ambient temperature to 1600°C (standard);-185°C to + 400°C (with low temperature option)
- Sample adjusting device for vertical adjustment of the sample, +1/-9 mm
- Automatic compensation of the thermal expansion of the sample carrier
- Chamber cooling: chamber body air-cooled; base plate and electrodes water-cooled
Option:
- Ni-plated chamber body made of brass for aggressive atmospheres or samples
- Front plate of HDK S1 chamber removable to mount low temperature option
- Cold stage: gold-plated copper block cooled down by liquid nitrogen and heated by special heating filament
- Temperature control: via NiCrNi (type K) thermocouples
- Temperature range: ambient to 1600°C (standard); -185°C to + 400°C (low temperature option)
- Atmospheres: high vacuum, inert gas, N2, air, oxidative mixtures
- X-ray window: Kapton foil (standard), 0° < 20 < 180°; beryllium window (option), 0° < 20 < 180°
