Shark-MarineModel SV-HD SDI -High Definition Camera

SHARE

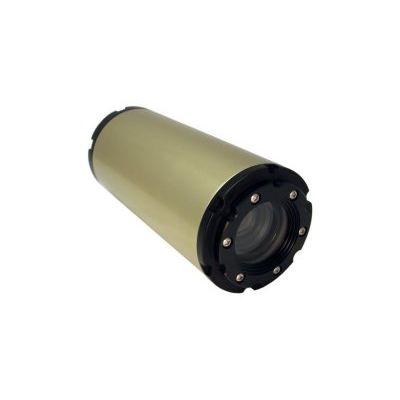

Shark Marine’s SV-HD-SDI is a broadcast quality High Definition (1080i) camera utilizes a 1/3 inch CMOS CCD to provide excellent image quality. This camera also features a 10X optical zoom, manual and automatic focus, which are controlled using a hand controller.  The camera is built into a ruggedized housing and can go to depths of a max 1524 meters (5000 feet). Video transmits over fiber optics, and power and zoom control is through a wet-mateable connector.  The SV-HD-SDI measures 7.75″ x 2.8″.

  • Pickup Device 1/3 type CMOS
  • Picture Elements Approx. 2M effective Pixels
  • Scanning System 2:1 Interlace
  • Video Format N/A
  • Aspect Ratio 16:9
  • Resolution HD – 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
  • Angle of View 50° Horizontal to 5.4° Horizontal
  • Minimum Illumination 1 Lux. (typical)
  • Video Output HD-SDI
  • Zoom 10X Optical Zoom
  • Power Requirements 12V DC (+/- 1.5VDC), 400 mA
  • Dimensions 19.7 cm x 7.1 cm, (7.75” x 2.8” dia.)
  • Weight 625 g (22.0 oz)
  • Depth 1500 m (5000 ft)
  • Auto White Balance Automatic, Manual and One Touch
