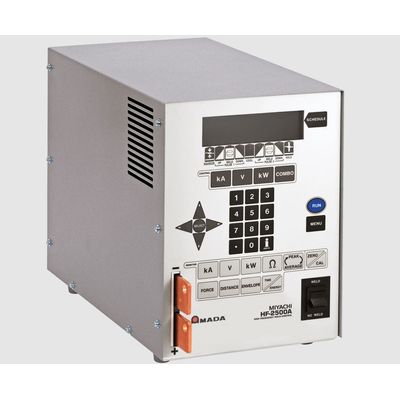

AMADA - Model HF-2500A -High Frequency Inverter Spot Welder
The HF-2500A high frequency inverter spot welder addresses the challenges of micro welding for a wide range of applications. Precise control of weld energy with high speed closed loop feedback and weld quality tools ensure high yields for the most demanding welding applications. Built in the USA, the HF-2500A high frequency inverter spot welder may be used in conjunction with one of our many weld heads as a single operator benchtop resistance welder and is also well-suited for integration into semi or fully automated resistance welding systems.
- Constant current, voltage, and power modes
- Monitors energy and resistance
- 2400 A maximum
- 25 kHz feedback
- Active Part Conditioning (APC)
- Pre-Weld Check
- Weld to Limits
Technology: High frequency inverter
Output Range: Amps: 100 - 2,400
Volts: 0.2 - 10
kW: 0.05 - 10
Weld Period Range (ms): 0.1-10, 10-99
Output Control Mode: Current, voltage, power
Open/ Closed Loop: Closed
Built in Monitor: Yes
Automation Ready: Yes
Input Power: 192 - 264 VAC, 25A
320 - 440 VAC, 20A
384 - 528 VAC, 13A
Single or 3 phase: 3 phase
Size (L x W x H): 18 in x 9 in x 12.8 in (460 mm x 230 mm x 325 mm)
Weight: 54 lb (25 kg)
