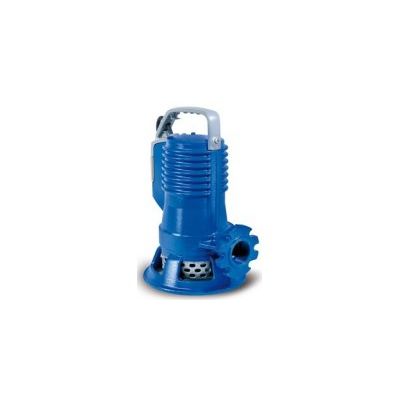

Zenit - Model AP BluePRO -High Head Impeller for Submersible Pump
Used for clear wastewater, rainwater and seepage containing small amounts of sand. Its high manometric head makes this series suitable for the creation of water features and decorative fountains. This electric pump is intended for both domestic and professional use. General features: Deliveries 1` 1/2. Motor poles 2. Passages 6 mm. Powers 0,74 ÷ 1,5 kW. High head impeller.
Electromechanical assembly in EN-GJL-250 cast iron, for submerged operation, fitted with 2 (two) opposing silicon carbide mechanical seals in oil sump, and V-ring in direct contact with the liquid. Ecological dry motor. Pump body in single casting with motor casing.
Used for clear wastewater, rainwater and seepage containing small amounts of sand. Its high manometric head makes this series suitable for the creation of water features and decorative fountains. This electric pump is intended for both domestic and professional use.
- Cooling jacket: Not applicable (00)
- Case: Grey Cast Iron - EN-GJL 250 (02)
- Impeller material: Cast iron EN-GJL-250 (01-GH)
- Nuts and bolts: Stainless Steel - Class A2-70 (42)
- Shaft: Stainless Steel - AISI 420 (23)
- Standard gasket: Rubber - NBR (77)
- Set of standard mechanical seals: Two Silicon carbide mechanical seals (SiC)
- Cutter material: Not applicable (99-NA)
- Maximum acoustic pressure: 70 dB
- Maximum immersion depth: 20 m
- Maximum operating temperature: 40 °C
- max starts per hour: 20
- Density of treated fluid: 1 Kg/dm³
- PH of treated fluid: 6 to 11 pH
- Viscosity of treated fluid: 1 mm²/s
