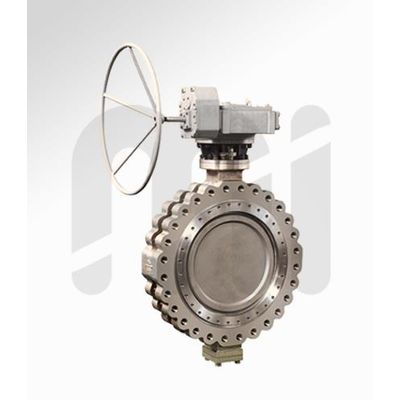

MotipurHigh Performance Butterfly Valves

SHARE

Butterfly valves suitable for simple as well as highly complex ones. Our Butterfly valves are high performance duty. Butterfly valves are suitable as either open/closed or rare application in regulating valves. They are available in a wide variety of sizes, materials and models. Butterfly valves can be operated with various controls actions like electric / pneumatic actuator options.

Most popular related searches
  • BODY: WCB / CF8 / CF8M / DUPLEX / ALL BRONZE
  • DISC: WCB / CF8 / CF8M / DUPLEX / ALL BRONZE
  • SEAT: EPDM / VITON / NBR / PFA / PTFE / RPTFE
  • SHAFT: AISI 410 / AISI 304/AISI 316
  • MFG STD: API 609 / ASME B 16.34
  • INSP & TEST STD: API 598
  • OPERATION: MANUAL GEAR OPERATED / PNEUMATIC ACTUATOR / ELECTRIC ACTUATOR
  • ENDS: ANSI B 16.5 #150
  • HYD TEST PRESSURE: BODY : 225 PSIG (16 KG/CM2)
  • SEAT : 165 PSIG (11.5 KG/CM2)
  • SIZE RANGE: 50 NB TO 600 NB (2″ to 24″)
