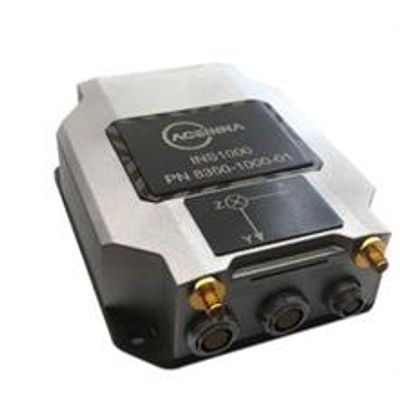

Aceinna - Model INS1000 -High Performance Inertial Navigation Systems (INS)
FromAceinna, Inc.
The INS1000 is a state-of-the-art, high performance integrated navigation system with built-in GNSS and inertial sensors. It offers dual frequency RTK and tight coupling between GNSS and inertial sensors, to provide cm-level accuracy, enhanced reliability, and superior performance. The Automotive Dead Reckoning (ADR) solution delivers strong performance in GNSS challenged urban environments.
Most popular related searches
- Position Accuracy (RTK) 2cm
- Position Accuracy (SBS) 1.2m CEP
- Heading Accuracy 0.1deg
- Attitude Accuracy 0.05deg
- Velocity Accuracy 0.01+/- m/sec
- Velocity Range 515m/s
- Rotational Rate Range 400+/- deg/s
- Accel Range 8+/- g
- Tightly coupled GNSS + Inertial solution
- Internal MEMS Gyros and Accelerometers
- GPS, GLONASS, Beidou, Galileo, SBAS
- Dual antennae for accurate heading
- Dual frequency (L1 / L2) RTK
- 100Hz navigation solution (position, velocity, pitch, roll, heading)
- Calibrated over -40C to +85C
- High Reliability, MTBF > 50k hours
- Autonomous Vehicles
- Precision Agriculture
- Construction Vehicles
- Automotive Testing
