TTV S.A.

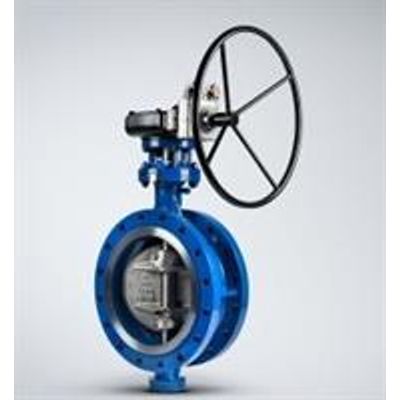

TTV Colossus - High Performance Metal Seated Triple Eccentric Butterfly Valves
FromTTV S.A.
Materials: Body: CF-8M, CF-8, WCB. Disc: CF-8M, CF-8, WCB. Shaft: 17-4 PH. Seat/ sealing: AISI 316, AISI 304, estellited. Retainer: WCB, AISI 316, AISI 304. Packing: Graphite. Other materials available on request.
Most popular related searches
butterfly valve
triple eccentric butterfly valve
power plant water
eccentric butterfly valve
water supply
industrial gas
seated butterfly valve
metal seated ball valve
industrial water
Rating
- DN80mm (3”)- 600mm (24”)
- PN 10-16-25-50-64-100
- Wafer, Lug, Flanged
- Temperatures: -196 ºC + 550ºC
- Body seat is designed as a tilted cone geometry
- Low operation torque
- No over-travel of the disc
- Extended valve life
- Reliable sealing performance
- Bi-directional sealing with preferred fluid direction
- Fire-safe
- High pressure and temperature applications whilst still providing bubble-tight shut off
- Industries: petroleum, natural gas, chemical industry, metallurgy, power plant, water supply and drainage...
- Special work conditions with rigorous sealing requirement, severe abrasion, low temperature (deep cooling), etc.
- Specially suitable for switching or regulation medium in pipeline of high temperature, fire resistance, acid and alkali, particle medium, etc
