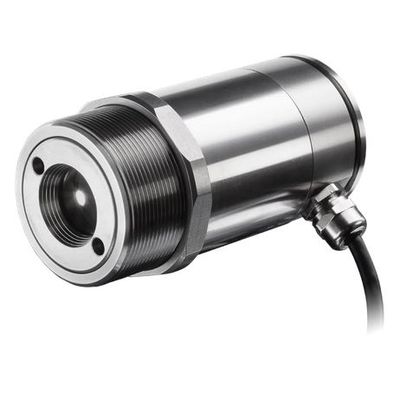

Optris - Model CSlaser hs LT -High-Performance Single-piece Industrial Infrared Pyrometer

The Optris CSlaser hs LT infrared thermometer is renowned for its high performance, providing a temperature measurement range from -20 °C to 150 °C. This pyrometers robust single-piece design ensures easy installation into various process systems. Key features include double laser spot marking, a higher distance-to-spot size ratio, and a stainless steel housing (M48x1.5). With measuring spots starting from 1.4 mm and response times from 150 ms, this infrared sensor is a top choice for professionals in industries requiring non-contact temperature measurement solutions.

The Optris CSlaser hs LT allows for measuring even the slightest temperature differences from 0.025 °C onwards, which is crucial for continually monitoring product homogeneities. System accuracy at ambient temperature stands at ±1% or ±1 °C, whichever is greater. The contactless thermometer demonstrates exceptional repeatability, with only ± 0.3% or ± 0.3 °C at ambient temperatures of 23 ± 5 °C and target temperatures above 20 °C.

The CSlaser hs LT infrared pyrometers redefine precision and reliability in non-contact temperature measurement across various industries. They provide essential temperature monitoring solutions, especially in fixed-installed or fixed-mounted applications where consistent and accurate measurements are crucial. The infrared pyrometers non-contact nature makes them ideal for processes where direct contact is impractical, such as when the product is inaccessible or moving.

Compared to smaller sensors from the CSlaser hs LT and CSmicro product lines, the CSlaser’s standout feature is its innovative double-laser sighting system, which precisely marks measurement targets and offers a higher distance-to-spot size ratio.

The CSlaser is a versatile instrumentation tool that can function as an analog device, providing a 4-20 mA signal and including an alarm output (open-collector). Equipped with a standard two-wire interface, the CSlaser hs LT ensures easy cabling and reliable data transfer to a PLC. For digital communication, the optional USB programming kit is necessary. This kit, in combination with the software, enables fast sensor parameterization and the recording and analysis of measurement data. In digital mode, the sensor and the laser are powered via the 5 V from the USB interface. The infrared sensor offers two modes of digital bidirectional communication, allowing data to be sent and received in both directions, and a unidirectional mode where the sensor only sends data in burst mode. Additionally, the CSlaser can operate in digital mode while simultaneously functioning as an analog device, with the sensor powered by the USB interface.

A remarkable feature of the CSlaser hs LT series is its double laser aiming marks, which indicate the actual spot location and provide valuable information about the spot size. This visualization ensures operators have a clear understanding of the measurement area, enhancing temperature monitoring accuracy, supporting exact alignment, and reducing measurement errors. The two laser beams follow the infrared optical path to mark the position of the measuring spot at any distance, unlike many IR thermometers with single lasers that only mark the center of the spot. These pyrometers are primarily used in industrial areas, research, and development, where small measurement spots are crucial for precise temperature measurement. Different focus versions allow flexible adjustments for various applications.

The CSlaser hs LT series takes temperature measurement to the next level with its exceptional optical resolution, reaching up to 50:1. This ensures precise and reliable temperature data even in narrow field-of-view conditions. Available in multiple versions with different close-focus optics, the CSlaser hs LT series offers unparalleled accuracy and versatility in non-contact temperature measurement technology.

Equipped with Optris accessories such as air purging, mounting flanges, and other add-ons, the Optris CSlaser hs LT pyrometer enables integration into many manufacturing and process applications. Designed and manufactured in Germany, these pyrometers undergo careful calibration to government standards such as PTB or NIST. Customization options, including different cable sizes, are available. Optris provides comprehensive support, including consultation on industrial applications and after-sales assistance.

In summary, the Optris CSlaser hs LT series combines precision, durability, and adaptability, making it an excellent solution for accurate non-contact temperature measurement in a wide range of industrial settings.

• Temperature range:
  -20°C to 150°C
• Spectral range: 8 to 14 µm
• Response time: 150 ms
• Price starts from 960,- Euro (plus VAT)
