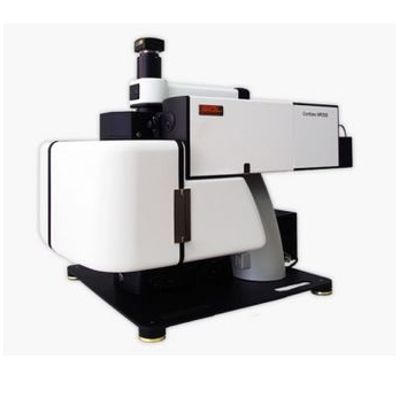

Confotec - Model MR200 -High Precision Confocal Microscope
Confotec MR200 is a compact high-precision and price-effective confocal Raman microscope ideally suited for routine measurements and scientific research. The true confocal optical layout with a set of automatically switchable confocal diaphragms (pinholes) allows conducting a spectral analysis of micro-particles or Raman imaging of macro-objects with very high spatial resolution.
The Confotec® MR200 system belongs to the most advanced confocal Raman microscopes produced by SOL instruments, where we have successfully combined the latest innovations in optoelectronics and the 25-years-long experience in spectroscopy and manufacturing.
-
Highest sensitivity; fully automated and compact;
-
Modular design, configuration upon a customer’s request;
-
High spectral resolution which is comparable to that of the most expensive and powerful Raman systems on the market;
-
Laser beam expander module for optimization of focused laser beam spot;
-
Long-term reliability and stability in operation, there is no need for any adjustments;
-
Autofocus system as an option.
All Confotec MR Raman systems are based on the research grade upright microscope NikonTM Ni. Standard modules for the implementation of operating modes in transmitted light, polarization and phase contrast, DIC, an attachment for epi-fluorescence, etc. can be installed through the use of the NikonTM Ni microscope.
