STS Sensor Technik Sirnach AG

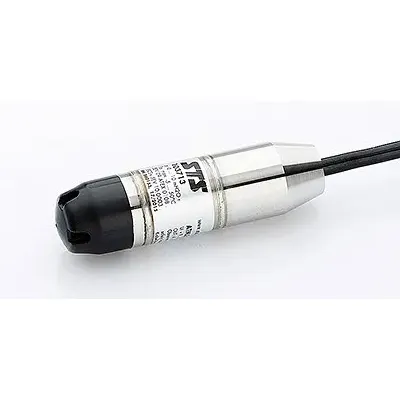

STS - Model ATM.1ST/N -High Precision Level Transmitter
Barometric or negative pressure ranges available. Features: Pressure measuring range: 0.5 … 250 mH2O. Accuracy: ≤ ± 0.10 / 0.05 % FS. Total Error Band: ≤ ± 0.15 %FS (-5 … 50°C). Operating temperature: -5 … 80°C. Process temperature: -5 … 80°C. Output signal: 0 … 5 / 0 … 10 VDC, 4 … 20 mA. Materials: Stainless steel, Titanium.
Most popular related searches
pressure monitoring
submersible level sensor
dynamic pressure monitoring
level sensor
barometric pressure
level transmitter
pressure transmitter
static pressure measurement
barometric sensor
- Any measuring ranges between 0 … 0.5 mH2O and 0 … 250 mH2O available
- Static accuracies available to 0.05 %FS
- Hysteresis and repeatability better than 0.01 %
- Piezoresistive technology suitable for static and dynamic pressure measurements
- Modular design ideal for customization to the application
- Barometric pressure ranges available
