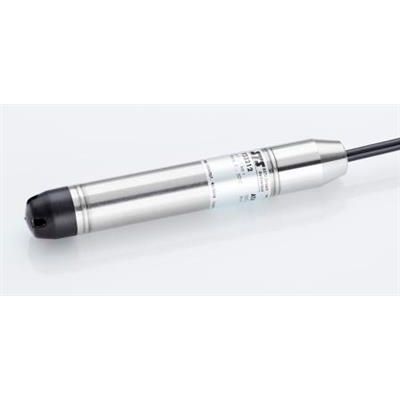

STS - Model ATM.1ST/N/T -High Precision Level Transmitter

SHARE

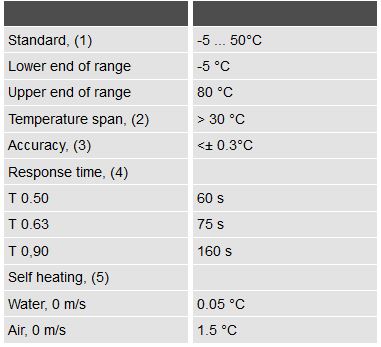

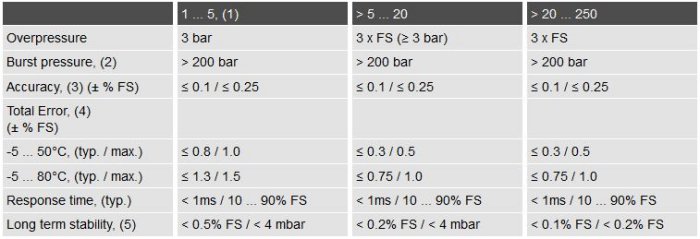

Pressure measuring range: 1 … 250 mH2O. Accuracy: ≤ ± 0.10 % FS. Total Error Band: ≤ ± 0.30 %FS (-5 … 50°C). Operating temperature: -5 … 80°C. Process temperature: -5 … 80°C. 2 Output signals (p & T): 0 … 5 / 0 … 10 VDC, 4 … 20 mA. Materials: Stainless steel, Titanium.

Most popular related searches
level transmitter
pressure transmitter
liquid level transmitter
pressure monitoring
temperature monitoring
multiparameter probe
  • High measurement accuracy is ensured by sophisticated digital temperature compensation algorithms
  • Exellent long term stability allow accurate measurements over a long period
  • Titanium version with FEP cable available for use in aggressive media
  • Multiparameter probe with pressure & temperature
