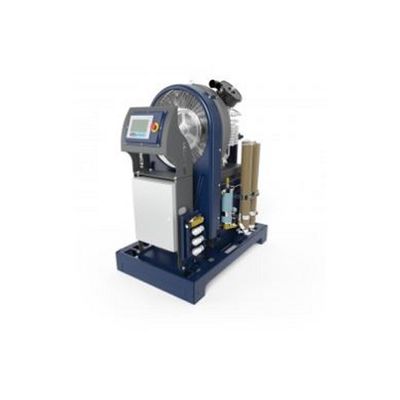

Bauer - Model 25-125 SCFM -High Pressure Air Cooled Systems
The high capacity range of large volume industrial air compressors from the technology leader in high pressure features continuous-duty rated, multi-stage, air cooled, pressure lubricated compressors for the most demanding requirements. The full-featured control system allows for unattended automatic operation. Heavy-duty frames and balanced compressor designs do not require a special foundation for installation.
Most popular related searches
industrial air compressor
industrial air system
air cooling system
industrial air
condensate draining
tensioner pump
reciprocating compressor
emergency stop
temperature switch
pressure sensor
- 350-1000 psi (24-69 bar)
- 7.5-240 scfm (212-6800 l/min)
- 5-150 HP (3.7-110 kW)
Standard Scope of Supply
- Multi-stage, air cooled, pressure lubricated, continuous-duty rated reciprocating compressor
- Electric motor (ODP) with v-belt drive, belt guard and belt tensioning device
- Automatic condensate drain with condensate collector
- Collector includes switch for high condensate level
- Automatic operation with PLC controller
- Includes operator keypad and text display for operation, maintenance and troubleshooting
- NEMA 4 rated electrical enclosure with UL listed control panel
- Fused control voltage transformer
- Hour meter and temperature switch
- Pressure sensors for oil pressure and final pressure
- Emergency stop push button and audible alarm
- Ambient temperature range 40˚ F to 113˚ F
- 24 month warranty
- Soft starter
- TEFC motor
- Circuit breaker disconnect
