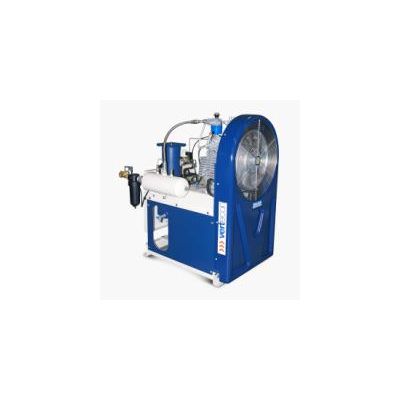

Bauer - Model 5-22 SCFM -High Pressure Air Cooled Systems
The new vertical series from the technology leader in high pressure offers space-saving designs suitable for the most demanding requirements. Open models offer a budget conscious practical solution while enclosed models can be installed in occupied spaces. Both styles include a full-featured control system for unattended automatic operation. The vertical series offers the perfect continuous-duty rated solutions for a wide variety of applications.
Most popular related searches
air cooling system
noise control enclosure
industrial air system
pressure and temperature switch
condensate draining
tensioner pump
reciprocating compressor
emergency stop
cooling system
industrial air
Standard Scope of Supply
- Multi-stage, air cooled, pressure lubricated, continuous-duty rated reciprocating compressor
- Electric motor (ODP) with v-belt drive, belt guard and belt tensioning device
- Automatic condensate drain with condensate collector
- Collector includes switch for high condensate level
- Automatic operation with PLC controller
- Includes operator keypad and text display for operation, maintenance and troubleshooting
- NEMA 4 rated electrical enclosure with UL listed control panel
- Fused control voltage transformer
- Hour meter
- Pressure sensors for oil pressure and final pressure
- Temperature switch
- Emergency stop push button
- Audible alarm
- Ambient temperature range 40° F to 113° F
- 24 month warranty
Verticus Specific
- Interstage pressure gauges
- Sound attenuated enclosure
- MINI VERTICUS: 70 dBA
- MAXI VERTICUS: 79 dBA
DIMENSIONS L x W x H inches (mm)
- VERTECON
- 45 x 32.5 x 55 (1143 x 826 x 1397)
MINI VERTICUS
- 49.5 x 29.5 x 58 (1257 x 749 x 1473)
MAXI VERTICUS
- 52 x 34 x 65.5 (1321 x 864 x 1664)
WEIGHT pounds (kg)
- VERTECON
- 550-660 (250-300)
MINI VERTICUS
- 880-950 (400-432)
MAXI VERTICUS
- 1100-1225 (500-556)
