EURO-P Kleindienst GmbH

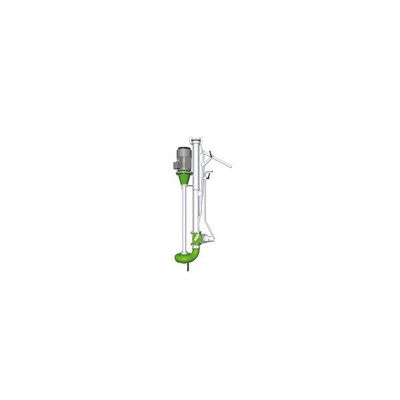

EURO-P - Model ER3-E HD -High Pressure Centrifugal Slurry Pump
The ER3-E HD is a high-pressure, air-cooled, electric centrifugal slurry pump engineered for robust and stationary use in pits and tanks. This versatile unit doubles as both a cutting-mixing pump and a stirring pump, switching between modes via a slide gate. Equipped with a 270° horizontally swivelable and 60° vertically adjustable mixing nozzle, it effectively disrupts sediment and floating layers for seamless homogenization before pumping. The reinforced cast-iron housing and specialized steel impeller with intake screw and carbide cutting edges ensure high durability, superior throughput, and longevity in abrasive or fibrous media. Available in base lengths suitable for pit depths up to 1.65 m, also extendable in 25 cm increments, with options for enhanced pressure via strengthened intake design and bearing arrangement.Most popular related searches
centrifugal slurry pump
slurry pump
high-pressure pump
high-pressure slurry pump
centrifugal pumping
centrifugal pump
mixing nozzle
tungsten carbide
pipe system
centrifuge
The robust Euro-P-type impeller transforms the power of the drive into a high flow rate. The special design of the steel made impeller consists of an intake screw with hardened cutting edges to shred straw and fibres. The hefty cast-iron volute sustains even the most wearing applications and is one of the reasons for the high durability.
Basic length for pit depths up to 1.65m; all further extensions in steps of 25cm to the basic length. Special sizes are manufactured on request. With a 90° bend as discharge to connect to an underfloor pipe. Equipped with reinforced bearings and a high-compression impeller with extended intake screw for increased pressure.
- Delivering effective stirring and mixing in agricultural slurry pits and tanks
- Pre-pumping homogenization and sediment disruption
- Wagon or tank filling operations
- Cleaning and flushing of containment structures
- Transfer applications in biogas, wastewater, and agricultural environments
- motor nominal power: choice out of 3 different AC motors with 15kW; 18.5kW and 22kW
- protection class: IP55
- rated speed: 1450 rpm
- operating voltage: 400V 3~, 50Hz
- pressure line: 133mm
- quick coupling outlet side: female Perrot (other quick couplings on request)
- basic length: 1.25m, all further extensions in steps of 25cm to the basic length
- sealing: carbon silicide mechanical seal
- oil qty: 2,5 ltr.
- lubrication oil: HLP 46
- volute: cast iron
- valve plug: cast iron, optional brass
- coupling housing: cast iron
- impeller and intake ring: steel, matching drive power, with tungsten carbide edges
- bolts: stainless steel
- other metal parts: galvanized, stainless on request
- Without starter
- To order in correct length and correct layout please include: pump + extensions + mounting parts
High Pressure Manure pump ER3-E HD: Order No
- 15 kW e-motor: 68-94-200
- 18.5 kW e-motor: 68-94-250
- 22 kW e-motor: 68-94-300
25cm extension extra length
