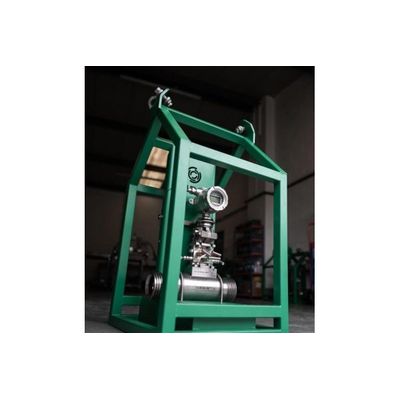

Integra-Cone - High Pressure N2 Gas Meter
Customers approached GM Flow with a requirement to measure high pressure nitrogen flow during coiled tubing operations. Traditional methods such as stroke counters on the pump drive shaft or gas turbine flow meters from other nitrogen flow meter suppliers, can be problematic and can easily be damaged by the extremely high flowing velocity encountered at the start of pumping operations.
GM Flow recognised these issues and based on customers’ requests, produced Integra-Cone™ nitrogen gas flow meter. This device offers a rugged and accurate differential pressure product for nitrogen gas. Integra-Cone™ has a working pressure of 5,000 PSI or 10,000 PSI required for these applications. Being a differential pressure product Integra-Cone™ has no moving parts, reduced leak paths and offers an instantaneous readout of nitrogen gas flow rate and flowing pressure, which gives the pump operators direct control of the flow rate and flowing pressure.
Integra-Cone™ is used for measuring high pressure nitrogen flow rate and pumping pressure, during gas lift, scale milling, coiled tubing, foam cementing and pipeline pigging/dewatering operations.
