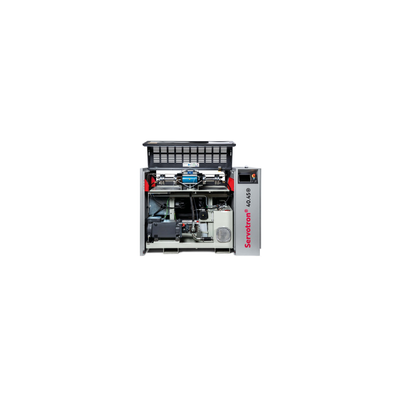

BFT - Model Servotron -High Pressure Pump
As a leading company in the field of high-pressure pumps for waterjet cutting, BFT – Best Fluid Technology – is your contact for innovative ready-to-use solutions.
This pump assures your high-tech functions and best quality! SERVOTRON® is equipped with a patented alternative drive system that is more efficient and consumes less power than conventional drives. Its operating pressure of 4,000 bar has been considered to be the optimum in the professional waterjet cutting sector for years. The Austrian technical control board has even confirmed that more than 25 % energy can be saved with SERVOTRON® in a comparison with conventional pumps. SERVOTRON® is available exclusively from BFT.
WHY SHOULD YOU CHOOSE A EUROPEAN PRODUCT?
- Because they are adjusted to the requirements of European companies.
- Because they are designed taking into consideration a responsible treatment of our resources.
- Because they are easy to service and all common metrical tools match.
- Because they meet European standards and quality expectations.
With the SERVOTRON® high-pressure pump, an internal gear pump is coupled with a highly dynamic, frequency-controlled servo drive: The internal gear pump generates hydraulic pressure, which is converted into high water pressure by the intensifier and measured by a high-pressure transducer. This drive concept offers a crucial advantage: In comparison with asynchronous motors, the efficiency of this new drive concept with a frequency-controlled servo drive is approximately 15 % higher.
The operational states are measured here in the high-pressure line and passed on to the control system. This creates a control circuit which reacts directly to the required water quantity and water pressure. The motor can be accelerated to 2,700 rotations per minute in 60 milliseconds. If the cutting head is closed, the motor stops and does not consume any energy. This gives the SERVOTRON® a much higher efficiency – and an extremely energy-saving cutting process.
- Driving power: 37 or 45 kW
- Permissible operating pressure, max.: 4,000 bar
- Feed rate: 3.8 or 4.6 l/min
- Low noise level at only <73 dB (A)
- "Green Efficiency”: approx. 25% more energy savings
- Built-in oil/air cooler saves money, protects the environment and is essential for CE marking
- Perfect control of the high pressure and minimal pressure peaks
- The accumulator ensures good cutting patterns and little wear and tear
