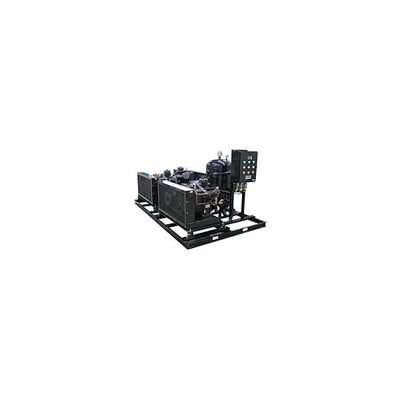

APPL - Model 1A45T2X3B-S60V -High-Pressure Reciprocating Air Compressors
High-pressure lubricated compressors and packages allow for the development of pressures from 1000 PSIG up to 10,000 PSIG. Designed and Packaged in our Cambridge, Ontario facility under the ISO 9001:2015 quality assurance system.
Most popular related searches
safety relief valve
pressure gauge
relief valve
air receiver
water cooling
abrasive blasting
drain valve
laboratory testing
air dryer
PET bottle
- ISO 9001:2015 quality assurance
- Pressures up to 1,000 PSIG
- Conservative pump speeds of 530 to 900 RPM
- Power Range: 3 to 20 HP
- 1,800 RPM high-efficiency motor (ODP or TEFC)
- Quality cast iron construction frame, cylinders and heads
- Robust overhung crankshaft design
- Solid connecting rod ends eliminates fasteners, reduces maintenance
- Deep finned cylinders for superior heat dissipation
- Balanced “V” cylinder design for smooth vibration-free operation
- Reliable splash lubrication
- Centrifugal unloader for automatic loadless start-ups
- Finned intercoolers and aftercooler with safety valves for effective cooling
- Vee belt drive
- ASME-approached air receiver, rated for operating pressure (For receiver mounted units)
- Safety relief valve, air service valve, pressure gauge, pressure switch for auto start/stop control, receiver manual drain valve
- Fabricated steel baseplate with vibration mounts
- Pneumatic circuit breakers
- Condenser & system testing
- PET bottle manufacturing
- Heat exchanger
- Coil leak testing
- Diesel engine starting
- High pressure abrasive blasting
- Laboratory test work
- High volume air storage
- Cylinder charging
- Many other high pressure applications
- Laser Cutting
- Built-in motor starters
- Customized control panels for ease of use
- Pump sequencing
- Shutdown alarms
- Optional touch screen for user interface or remote status
- Totally enclosed OSHA-compliant vee belt guard
- Constant speed control unloader
- Water-cooled aftercooler
- Magnetic motor starter
- Twin tower regenerative air dryer
- TEFC or explosion proof motor
