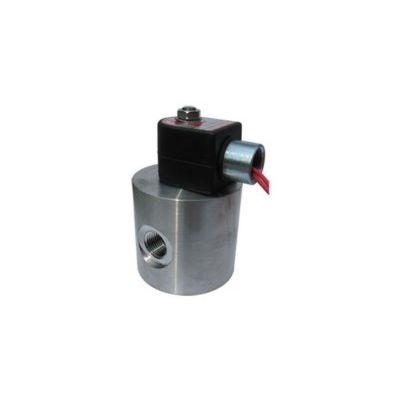

Clark Cooper - Model EH40 Series -High Pressure Solenoid Valves

The full port EH40 is great for a wide range of media. This pilot operated valve has become a popular and effective choice in the emerging Hydrogen Dispensing market. The EH40 is also an excellent valve to control the flow of high pressure air, water, hydrogen, nitrogen, and other gases or light liquids compatible with materials of construction. Available in both 1/4` and 1/2` sizes, the EH40 is the workhorse of our collection and offers a cartridge design that alleviates your demanding maintenance requirements. The EH40 requires a 50-100 PSIG minimum pressure differential between inlet and outlet for operation. The valve`s simple design has made it a great choice for inlet pressures as high as 10,000 PSIG. The Normally Closed EH40 valves must be mounted upright and vertical, while the Normally Open EH40 valves are universal mount. The Normally Open EH40 valve is only available in AC power. Filters are recommended for all applications.
