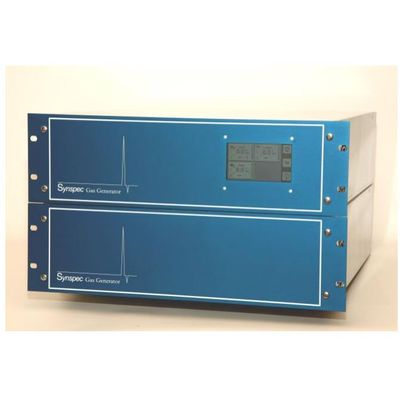

Synspec - Model GC Station Ultra RC-CAT-70/2000/70 -High Purity Hydrogen Nitrogen & Zero Air Generators With On Board Compressor

Based on the field proven Solid Polymer Electrolyte (PEM) cell technology, pure Hydrogen is produced at low pressure from electricity and high quality distilled water. After production, H2 is dried by a passive dryer. It is available 24/7 with constant purity >99.9999%. Output pressure is regulated electronically and could be set from 0.5 to 7 bar.

This process can be started on demand and does not require any caustic solution.

Compressed AIR passes through a Pressure Swing Adsorption (PSA) module to dry and filter it from pollutant gases. Based on the same  concept, Nitrogen is then extracted from a set of filters filled up with CMS.

Both Output pressures are regulated electronically from 0.5 to 5 bar. Due to the software being focused on safety, automatic regulation and reliable communications, the GCSTATION ULTRA RC is easy to install, reliable, safe and pleasant to operate.

• Reduces in operation costs. Return on investment within 15 months.
• Improves resolution and detection limit versus Helium only usage. Provides High pressure stability.
• H2, N2 and Zero Air available 24/7 at constant purity. No contamination.
• Independent source of Hydrogen, N2 and Zero Air that does not require any piping and can be easily moved around the laboratory. Remote control from PC, I-phone and I-pad
• Low noise compressor < 55dB(A)).
• Very safe operation, internal leak-test, automatic shut-down, over-pressure valve, current and voltage limits.
• No handling and storage of cumbersome gas cylinders. No cylinder rental fee.
• Extended autonomy with 5L water tank.
• Long life compressor with power economy function.

• Combustion gases for FID
• Carries gases for GC

MODEL

• GCSTATION ULTRA RC-CAT-70/2000/70;

OUTFLOW CAPACITIES @ 1013/20°C

• GCSTATION ULTRA RC-CAT-70/2000/70: 70 Nml/ min H2 & N2, 2000 Nml/min AIR

H2 PURITY

• >99.9999% (maximum HC content : 0.05ppm), Dew point -75°C

AIR PURITY

• < 10ppm H2O (<-60°C DP); < 50 ppb HC ; < 50 ppb CO and CH4; Particulates <0.1µm

N2 PURITY

• > 99.9999% ; < -75°C dew point, < 1 ppm H2O, particulates <0.1µm; <0.05ppm HC-CH4

OUTLET PRESSURES

• H2: from 0.5 to 7 bar (7 to 100 psig), adjustable by software.
• AIR& N2: from 0.5 to 5 bar (7 to 70 psig), adjustable by software.

WATER QUALITY

• High purity deionised+filtered water. TOC free.

WATER CAPACITY

•  5L external tank. Generates about 6000L Hydrogen

COMPRESSED AIR

• On Board compressor

SAFETY

• Low H2 stored volume; over pressure valve; internal leak test; automatic shut down; maximum current limit, water quality, over temperature.

SOUND PRESSURE

• < 59 dB(A), measured at 1m

MANUAL CONTROL

• Through a 4.3” TFT-LCD color display with touch screen, located on the front panel. Display of major parameters, functioning status and alarms. Intuitive navigation to functions by menus and sub menus.

REMOTE CONTROL, COMMUNICATIONS

• USB. RS485 (Mod-Bus) or Display.
• Trough Ethernet 10/100 network
• Trough WLAN network, with PC, I-Phone, I-Pad (option)
• Log book download by USB.

OUTLET FITTINGS

• Stainless steel 1/8" OD compression

POWER SUPPLY

• Automatic switching from 90VAC to 260VAC, 47 to 63 Hz

POWER CONSUMPTION (MAX AT FULL FLOW)

• GCSTATION ULTRA RC-CAT-70/2000/70 : maximum 600W

DIMENSIONS

• W=483mm/19ins, H=265mm/10.5ins (2x3U), D=520mm/21ins

NET WEIGHT

• GCSTATION ULTRA RC-CAT-70/2000/70: 60 Kg

CERTIFICATION

• CE
