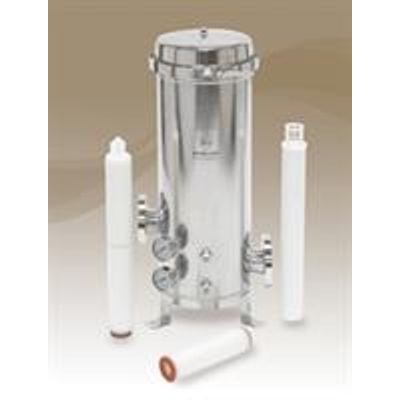

Shelco MicroVantage - Model HPI Series -High Purity Multi-Cartridge Industrial Filter Housings
Premium quality industrial filter housing loaded with standard features for high purity applications – competitively priced for exceptional value. Holds four (4) through fifty (50) cartridges to service a wide range of flow rates. Heavy duty 316L Stainless Steel filter housing construction for maximum durability. Electro-polished finish provides maximum cleanliness and corrosion resistance for high purity applications. Universal cartridge connectors accept 222 cartridges for positive sealing or DOE cartridges for greater versatility. Maximum operating pressure: 150 PSI (10 bar) 300ºF (149ºC). Equipped with ANSI flanges for inlet and outlet connections (sanitary ferrules optional) and stainless steel pressure gauges.
- 316L stainless steel construction with electro-polished finish for maximum durability and corrosion resistance
- Available with two closure options:
- V-band clamp closure for quick and easy cartridge change outs
- Swing Bolt closure for secure sealing
- Holds four through twenty one cartridges for optimal choice of flow rates
- Universal seat for either 222 flat/fin or double open-ended (DOE) style cartridges (226 style connectors are optional)
- Adjustable top plate accepts variable length cartridges
- Gauge Ports with stainless steel liquid pressure gauges (0-200 psi) provide easy monitoring for optimal system maintenance
- Raised Face Flanges for rugged connections
- Mounting legs provide secure installation
Maximum Operating Pressure
- 150 psig (10.3 bar) @ 300˚F (149˚C)
Connections
- Inlet /Outlet: RF flange (Standard)
- 2" - 4HPI and 7HPI
- 3" - 12HPI
- 4" - 21HPI
- Optional: Sanitary Ferrules
- Drain Ports: 1/2" NPT
- Optional: Sanitary Ferrules
- Vent Ports:
- 1/4" NPT - 4HPI and 7HPI
- 1/2" NPT - 12HPI and 21HPI
- Optional: Sanitary Ferrules
Materials of Construction
- Head / Shell / Connections:
- 316L Stainless Steel Electro-polished
- Closure:
- Clamp – 304L Stainless Steel
- Swing Bolts – Zinc Plated Steel
- Gaskets
- EPR (FDA Grade)
- Optional: Buna, Silicone, Teflon Encapsulated Silicone, Viton
- Cartridge Type
- 222 or DOE style cartridges
- Optional: 226 adapters
Custom Options
- See Ordering Guide for complete listing
- Water
- Desalination
- Chemicals
- Food & Beverage
- Electronics
- Oil / Gas
- Power
- Inks / Paints / Coatings
- Coolants
- Pulp & Paper
