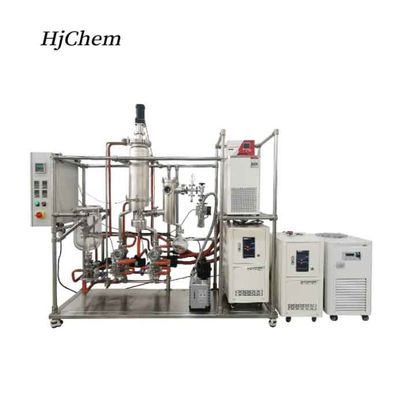

Hjchem - High Quality Short Path Molecular Distillation Unit

1. Evaporation area: 0.06, 0.1, 0.15, 0.25, 0.35, 0.5, 1, 1.5, 2, 3, 5 ㎡ and more.

2. Vacuum degree: <=0.001mbar

3. Feed speed: 0.5 ~500kg/h

4. Max speed: 350rpm

5. Operation temperature: -90°C ~ +350°C

A molecular distillation unit operates under high vacuum, allowing efficient separation with minimal thermal degradation—ideal for essential oils, CBD, pharmaceuticals, and specialty chemicals.

1. Evaporation Area: 0.25 m² for optimal distillation efficiency.

2. Main Evaporator: Stainless steel jacketed design with an integrated condenser coil.

3. External Coil Condenser: Enhances cooling performance for improved separation.

4. Feeding System: 10L jacketed glass feed tank for controlled material input.

5. Pumping System: Includes 3 gear pumps for continuous feeding and fraction collection.

6. Wiper Mechanism: High-temperature-resistant blades (up to 300°C) ensure uniform thin-film distribution.

7. Sealing System: Fluoropolymer-coated seals for superior vacuum retention.

8. Vacuum System: Combination of rotary vane pump and diffusion pump for deep vacuum (up to 0.001 mbar).
