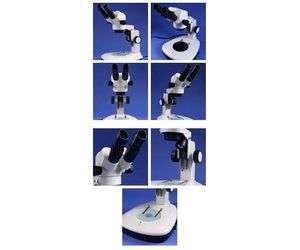

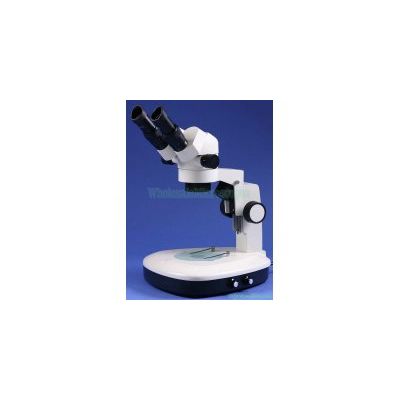

Model 6X - 60X -High Ratio Continuous Zoom Stereoscopic Binocular Microscope

SHARE

Professional Stereo High Ratio Zoom Binocular Microscope. Bright and Clear 3-D Stereoscopic Images. Perfect for Studying Plant-Animal-Mineral Specimens. Also Fits Many Industrial Applications. Great for Gemologists, Collectors, Engravers, Document Examiners, Students, Schools, Research Labs, QC Stations, and for Circuit Board Inspection and Repair. Compare to Similar Units costing Much More.

Most popular related searches
binocular microscope
rack and pinion
microscopy
microscope product
stereo microscope

Special Features

  • Extra Large Glass in Eyepieces for Ease of Viewing and Less Eyestrain. The Glass Itself is 1 Inch Diameter!
  • Before buying a different model, be sure to check their glass size. Most are much smaller than this.

Eyepieces and Magnification

  • Excellent High Ratio Zoom Range (Without Changing Eyepieces): 6.5x - 60x Continuous Magnification, With Included 30mm Wide Field 10x Eyepieces.

Head - Interpupillary Distance - Diopter

  • 45 Degree Inclined Binocular Head, Rotatable 360 Degrees.
  • Adjusts to the Distance Between your Eyes: 55 to 70mm InterPupillary Distance.
  • Diopter Adjustment on Both Oculars to Correct for Your Specific Vision Needs.

Illumination

  • Independent Variable Intensity Dual Halogen Upper and Base Illumination: 15W with Built-In Reflector (Upper), 6V/12W (Base).

Focusing and Working Distance

  • Easy Large-Sized Focusing Knobs on Both Sides of Microscope.
  • Rack and Pinion Steel Gears for Focus Movement.
  • Extra Long Focusing Adjustment Range: 90mm (Maximum Head Travel Distance).
  • Nice Working Distance to Allow Room for Your Tools (Distance from Bottom of Lens on Head to Top of Object in Focus): 100mm.
  • Large Working Area: 155mm. Distance from Bottom of Head to Top of Stage when Head Raised to Maximum Height.

Frame - Base - Size - Weight

  • Total Overall Height of Microscope: 450mm.
  • Instrument Weight: 16 lbs.

Included Items

  • Includes C-Mount with Lens for Attaching CCD Camera Equipment.
  • Includes Rubber Eye Guards for Blocking Stray Light.
  • Includes Double Sided Black/White Disc Plate to Replace Glass Stage Plate.

Options

  • Optional Eyepieces to Increase Magnification.
  • Optional Bottom Lens to Increase or Decrease Magnification or Change Working Distance.

Additional Information

  • Manufactured under ISO: 9001 Standards.
  • Protective Molded Styrofoam Container.
  • Precision Ground Glass Lens.
  • Quality Construction, Metal Frame.
  • 110 VAC (email about 220V availability).
  • 100% Brand New!

5 Year Manufacturer`s Warranty

  • The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
  • If your system needs repair, simply let us know and we will see that it is back in service ASAP.
