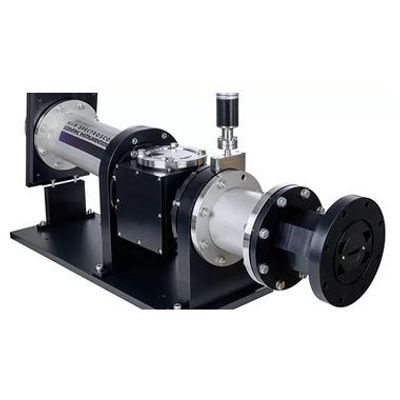

highLIGHT - High-Resolution Spectrometers
The highest spectral resolution in convenient flat-field configuration on the market. Resolution of 0.006nm or better combined with wide single-shot wavelength coverage. highLIGHT can be used with or without entrance slit. Its modular design features an integrated slit holder and filter insertion unit, as well as a motorized grating positioning.
-
flat-field grazing-incidence spectrograph
-
proprietary H+P design for direct source imaging and maximum light collection
-
fixed or variable entrance slit
-

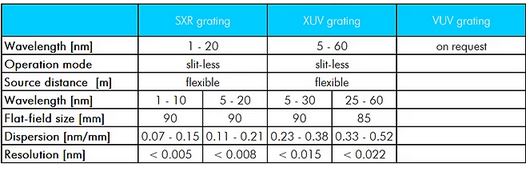

resolution
-
wavelength coverage 1-200nm, configurable wavelength selection
-
operating pressure
-
turn-key, intuitive operation
We offer specialized solution for almost every application, including:
-
non-magnetic instruments
-
special housing geometries, in-chamber solutions
-
EMP-protection
-
UHV configurations
Please contact us with any special requirements you may have.
Our goal is to supply the perfect spectrometer for your application. We customize every spectrometer to exactly match the desired application.
This includes e.g.:
-
interfacing to vacuum chamber
-
adaption of source distance
-
integration of customer-supplied detectors
-
user-defined filter mounts
-
high harmonic generation (HHG) radiation
-
high intensity laser-matter interaction
-
undulator and free-electron-laser (FEL) radiation
-
magnetically confined plasmas
-
fusion research
-
characterization of line-emission sources
Our spectrometers can be operated with all state-of-the-art detection systems:
-
x-ray CCD cameras for highest resolution, large dynamic range and absolute signal strength
-
large-area MCPs for broadest wavelength coverage and gated / intensified detection
