Intimus International GmbH

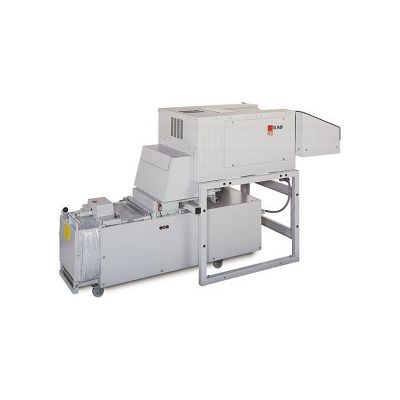

intimus - Model VZ 14.00 -High Security Shredder
Shredder baler combination for high security applications: equipped with a pre-shredder for 6 x 50 mm and an after-shredder for 2 x 15 mm cross-cut this shredder equals security level 4 according to DIN 32757 - compression in the integral baler in the next stage ensures that even the requirements of security class 5 can be fulfilled. Practical throughput of up to app. 250 kg per hour.
Most popular related searches
high secure shredder
shredder baler combination
secure shredder
shredder
shredder baler
baler combination
pre-shredder
hydraulic baler
baler
baler hydraulic
- Manual ON/OFF control
- Auto Stop/Reverse/Restart
- Sheet steel housing with hydraulic baler
Specifications
- Cutting size paper (mm) 2 x 15 mm
- Security level DIN 32757-1 4
- Security level DIN 66 399 P-5 / F-2
- Cutting capacity (70g/m²): 90-100 sheets
- Cutting capacity (80g/m²): 80-90 sheets
- Cutting speed (m/sec.): 0,24 m/sec.
- Working width (mm): 500 mm
- DIN paper size: A2
- Motor Power kW: 11,3 kW
- Supply voltage (Volt): 400 Volt
- Noise level: 74 db(A)
- Weight gross (kg): 1580 kg
- Weight net (kg): 1370 kg
- Baler press force in (t): 8
- Bale weight: 60-80
- Bale dimensions (L/W/H) cm: 80x60x50
- Width (cm): 120 cm
- Depth (cm): 305 cm
- Height (cm): 168 cm
- In operation - depth cm: 366
