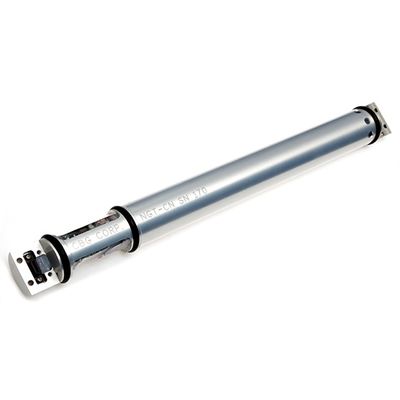

CBGModel NGT-CN - P/N 201-000-000 -High Sensitivity Non-Directional Gamma Tool ((1.36 Inch OD)

SHARE

The NGT-CN High Sensitivity Non-Focused Gamma Tool is similar to the NGT-T model but has 40% higher sensitivity due to its longer scintillator crystal. The NGT-CN is interchangeable with the standard NGT-T gamma tool. It is the same overall length and diameter as the NGT-T but is used in high sensitivity non-focused gamma applications. To protect your gamma investment and ensure the best performance use CBG original SNB Snubbers-Shock & Vibration Isolators.

Most popular related searches
  • Detector
    • Scintillator Crystal: Sodium Iodide, Na(TI)
    • Photomultiplier: R3991A (Hamamatsu)
  • Mechanical:
    • Diameter (OD): 1.36”
    • Length (make-up): 13.6”
    • Weight: 1.9 lb.
    • End Connectors: Micro-D Subminiature, 15-Pin
    • Material: Aluminum Alloy
  • Performance:
    • Sensitivity: 1.59 CPS/API*
    • Accuracy: +/- 5% to 300°F, +/- 10% to 350°F
    • Thin-Bed Resolution (8” hole Diameter): 10.3″
  • Environmental:
    • Operating Temperature: 0°F to 350°F
    • Survival Temperature (reduced accuracy): -40°F to 400°F
    • Heat/Cool Rate, Max.:  5°F per minute
    • Vibration (3 axis) 50-1000Hz, Random: 30G (20G RMS)
    • Shock (3 axis): 1000G, 0.5ms, half-sine
  • Power Requirements:
    • DC Input Voltage: 17-48 VDC, 50VDC Max.
    • Tool Current: 8-11 mA
  • Output Signal: Negative Pulse: +5V to GND, 5 uSec width
