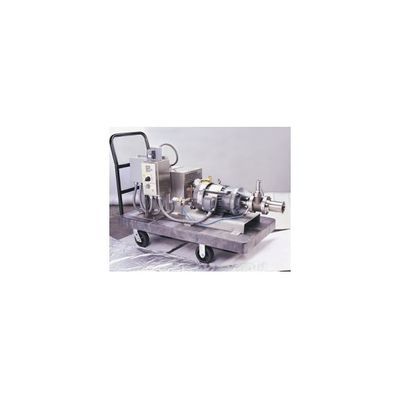

ARDE Barinco - Model 3 x 1.5 Dicon -High Shear Dispersion Grinder Pump

SHARE

Wetted parts Type 316 stainless steel. Toothed impeller and toothed liner combination has 6 rows of 6 liner teeth meshing on 3 rows of 7 teeth on helical impeller providing over 6,480 grinding convergences per second at 0.030 inches tolerance. Discharge grid pattern is 7 rows x 7 rows of 1/8` diameter opening (49 holes). Consult factory for alternative grid configurations.

Most popular related searches
grinder pump
hole opener

3" diameter conical inlet flange welded to 6" long stub having 3/4" NPT fitting with plug and 1/4" NPT with plug fitting with 150# ASA rotatable C.S. painted flange. 1.5" diameter conical outlet flange welded to 4" long stub having 3/4" NPT fitting with plug and 1/4" NPT with plug fitting with 150# ASA rotatable C.S. painted flange. High pressure capability disconnect flanges have viton o-rings where held to Dicon body by quick release clamps. Sanitary clamp style connections available.

Double mechanical seal with Viton o-rings on shaft for operation up to 150 psig at 350 degrees F. Seal requires 0.25 GPM flush and pressurization at 20 PSIG higher pressure than on process side.

Coupled to and mounted on 7.5 HP 3600 RPM explosion proof motor for use on 3/60/230 or 460 volt service. Motor starter is not supplied. Unit is mounted on a carbon steel base.
