Specac

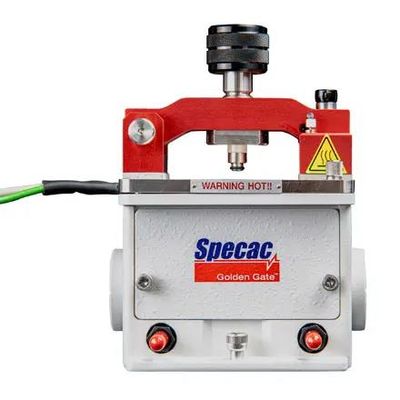

Specac - Model Golden Gate -High Temperature ATR Accessory
FromSpecac
The High Temperature Golden Gate option enables analyses up to 300 oC, suitable for polymer studies and other temperature-ramping experiments.
Most popular related searches
FTIR spectrometer accessories
temperature monitoring
digital temperature controller
tungsten carbide
ATR crystal
scratch resistance
spectrometer accessories
liquid sampling
ATR spectroscopy
FTIR spectrometer
- High temperature capability: Solid and liquid samples can be heated up to 300 oC; suitable for adhesive, coating, paint, corrosive, catalytic, cement, soil, protein, drug substance, and acid-soap phase transition applications.
- Robust brazed monolithic diamond ATR: Adhesive-free, non-laminated monolithic diamond with brazed tungsten carbide mounting enables excellent thermal and chemical robustness, scratch resistance, and a wide spectral range.
- USB controller and PC based control software: PC software and USB controller save lab space and allow real-time monitoring of temperature curves, automation, and easy data logging.
- Pressure tower: Reduced sample-to-sample variation with repeatable and reproducible load application pre-set to 80 lbs (adjustable to 180lbs upon request).
USB Temperature Controller The High Temperature Golden Gate is controlled by a USB-connected controller operated through a software interface. The software is free to download from Specac’s website.
- PC control of accessory temperature
- Graphical display of temperature
- Datalogging temperature to file
- Temperature sequence programming
- Windows 7, 8 & 10 compatible
Applications
- Polymers & adhesives
- Biomaterials
- Carbon capture media
- Chemical processes
- ATR crystal: Monolithic diamond
- Crystal sealing: The diamond is sealed with a metal braze into a tungsten puck.
- Angle of incidence: 45o
- Spectral range: ZnSe lenses 5000-700 cm-1 KRS-5 lenses 6500-400 cm-1
- Temperature range: Ambient to 300 oC
