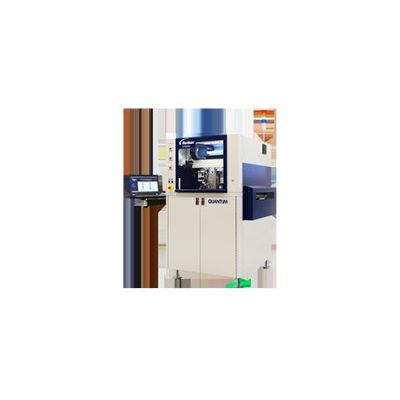

Quantum - Model Q-6800 -High-Value Fluid Dispensing System
The in-line and batch Quantum systems deliver uncompromising quality, value and productivity for demanding fluid dispensing applications: Patented advanced closed-loop process controls for maximizing product yield. Automated calibration enables quick and repeatable set-up. Standard features including range-finding laser height sensor, digital vision system, and substrate heating capability. Large 423 x 458 mm dispense area offers substrate size flexibility and can handle more parts per load for higher productivity. In-line or Batch process configuration to address evolving customer needs.
The Quantum system with Nordson ASYMTEK`s jet and valve technology is the cost-effective solution for many demanding mid- to high-complexity fluid dispensing requirements for PCBA, SMT, industrial and other electronic assembly applications including:
- CSP, BGA and board-level underfill
- Corner and edge bonding
- Dam and fill
- Potting and encapsulation
- Surface mount adhesives
- Conductive epoxy
- Larger board or substrate size
For batch processes, the Quantum batch system elevates precision batch dispensing to next level of refinement. The Quantum system`s production-proven X-Y overhead gantry motion system brings high performance dispensing accuracy, speed, and reliability to batch processing. With up to 423 x 458 mm dispense area*, the system is excellent for larger work-piece and dual-valve dispensing providing application flexibility.
With the Quantum system, users no longer have to choose between asset cost and high quality dispensing capability.
(Dispense area includes offsets for vision and height sensing)
Features
- Integrated weight scale with patented MFC/CPJ closed-loop process controls
- Dual-Action or Dual-Simultaneous Dispensing capability
- Dual-lane Dispensing for increased throughput
- Programmable fluid valve pressure control for CPJ+
- Fids-on-the-Fly software for high-speed fiducial capturing
- Dual-lane configuration
- Pre- and post-queue stations
- MH-900 material handlers
- Fluidmove software
