Nordson EFD products

Flux application using the DispenseJet DJ-2200 spray valve jet is a superior alternative to dipping and screen printing during assembly operations for flip chips and other semiconductor packages. Jetting offers both speed and accuracy, and eliminates contamination and material waste associated with conventional methods. Jetting allows 100% coverage with a minimal amount of flux (typically 5 µm), producing less residue after reflow. Less residue results in better package reliability.

Made from burr-free, polished passivated stainless steel, Optimum® general purpose dispense tips are ideal for handling a wide range of assembly fluids.

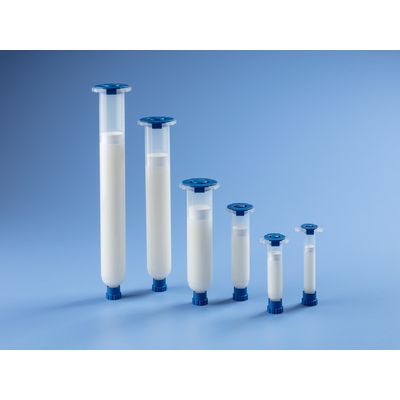

Optimum syringe barrels feature ZeroDraft walls with consistent internal diameters that maintain a perfect seal with pistons to ensure accurate, consistent filling and dispensing with virtually no fluid waste.

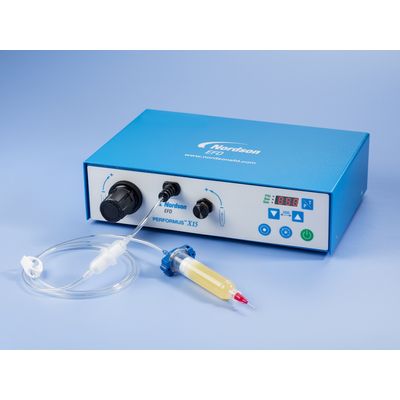

Nordson EFD Performus Series fluid dispensers provide reliable benchtop dispensing control for general application of glues, oils, greases, epoxy, silicones, sealants, cyanoacrylates, solder pastes, and other assembly fluids dispensed with syringe barrels.

High-precision benchtop fluid dispensing control for advanced applications of glues, oils, greases, epoxy, silicones, sealants, cyanoacrylates, solder pastes, and other assembly fluids dispensed with syringe barrels.

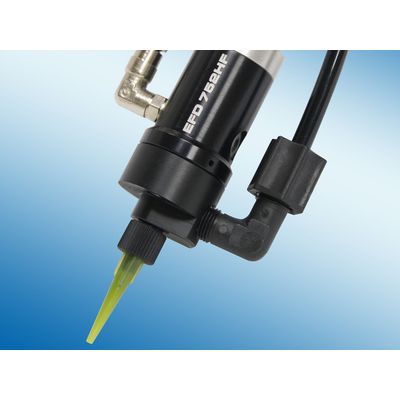

The 752HF Series high flow diaphragm valve provides precise, drip-free dispensing of UV-cure resins and similar fluids used in the media manufacturing of DVDs, Blu-Ray DVDs, and CDs.

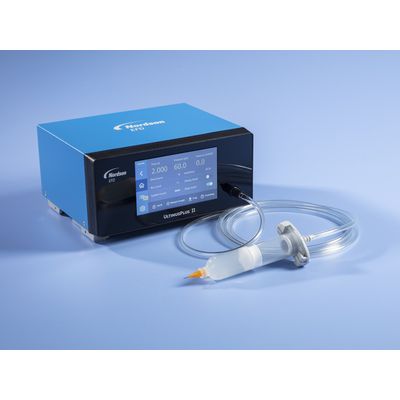

Nordson EFD UltimusPlus fluid dispensers provide high-precision benchtop fluid dispensing control for advanced applications. These network capable dispensers use Ethernet compatibility with NX protocol via TCP/IP for Smart Factory integration.

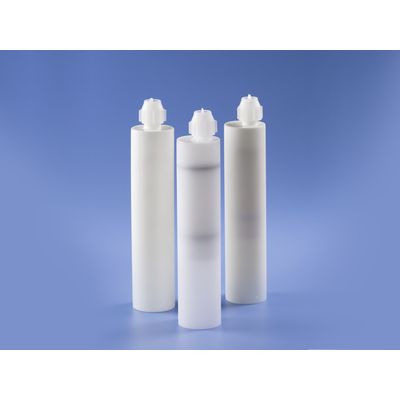

The breakthrough, two-component u-TAH Universal Cartridge looks identical to standard caulking cartridges, yet delivers the most effective, highest quality dispensing of two-part fluids in the industry.

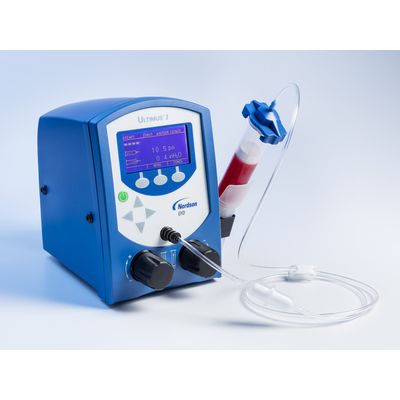

Ultimus V provides high-precision benchtop fluid dispensing control for advanced applications of fluids that change viscosity.

High-resolution touchscreen programming of 797PCP-2K Series progressive cavity pumps provides intuitive adjustment of meter mix dispensing parameters.
