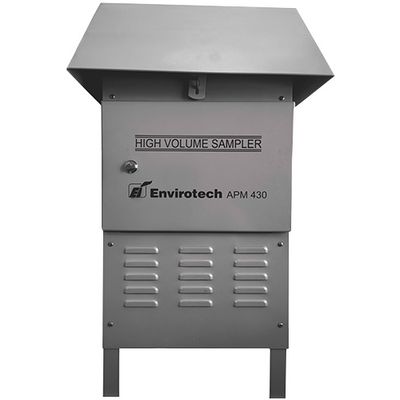

Envirotech - Model APM 430 -High Volume Air Sampler
High Volume Samplers are the basic instruments used for monitoring dust in Ambient Air. They are in widespread use all over the world. In these samplers, airborne suspended particulate (SPM) are measured by passing air at a high flow rate through a high-efficiency filter paper which retains the particles and provisions have been made for simultaneous sampling of gaseous pollutants also. Envirotech APM 430 has a continuous duty blower with a brushless motor to ensure continuous working for up to 28 hours. The noise level has also been reduced by using a noiseless blower. It also has provision for gaseous sampling for example NOx It is more compact and lighter can be carried in a car trunk and is ideal for field use.
Most popular related searches
high volume sampling
high volume air sampling
ambient dust monitoring
flow monitoring system
ambient air monitoring
air dust monitoring
ambient air
dust monitoring
restriction orifice union
PVC tubing
- Unique flow measurement system using an orifice plate directly calibrated in cu m/minute
- Anodized aluminum body & framework to support various parts of Sampler to withstand weathering effects
- Separation of gable roof from the main housing, making the system more rugged & compact for easy transportation
- 24 hr programmable timer
- Reduced noise
- Less variation in flow
- Silicone tubing in place of PVC tubing
- Lighting facility to facilitate monitoring in the absence of ambient light
- Provision to perform gaseous sampling using gaseous sampling attachment APM 411. - Modular
- Flow Rate: 1.1to 1.7 Cu m/min (Free Flow)
- Particle Size: Down to 0.5 micron depending upon Filter used
- Recommended filter: GFA (8” x 10” ) for common use, and EPM 2000 for Special Research Use
- Sampling Time Record: 0 to 99999.99 hrs. Time totalizer records the running time in hours
- Sampling Time: 24 hour programmable timer, required intervals can be conveniently programmed
- Power requirement: 220 Volts, 2 Amps, Single phase AC
- Size and Weight: 440mm (L) x 440mm (W) x 820mm (H) Wt. -- 25 Kg Approx
- Warranty: One year
