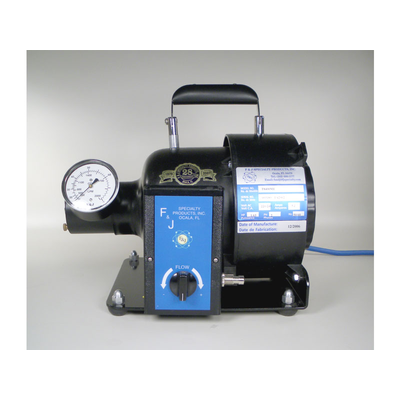

F&J - Model T8400M and T8400ME -High Volume Air Samplers
The T8400M (100-120VAC) and the T8400ME (200-240VAC) Series Air Samplers are high volume air samplers with two stage, thermally protected electric motor driven vacuum blowers. The motor driven blower is mounted in a very durable lightweight plastic polypropylene housing, mounted to a sturdy base plate, having non-skid rubber feet. An optional portable flow-monitoring gauge calibrated in cubic feet per minute (CFM) or liters per minute (LPM) or cubic meters per minute (CMM) may be utilized to measure the flow rate. The flow rate is adjustable by use of a motor speed controller.
The T8400M or T8400ME Air Sampling System is designed for periodic short-term indoor use. Please consult the product specifications for the design temperature range and the installation catego-ry.
- Very durable polypropylene plastic housing
- Lightweight
- Variable speed control up to full flow
- Thermally Protected Motor
- Dual ball bearing motor
- 100-120VAC, 50/60Hz; single phase, 1.4 H.P. 220-240VAC, 50/60Hz; single phase, 1.8 H.P.
- Flow measurement gauge options Single: 10 – 70 CFM (280 – 1980 LPM) Dual: 10 – 70 CFM (280 – 1980 LPM) Dual: .5 – 2 CMM (500 – 2000 LPM)
- Circuit Breaker Protected
- Flow rate monitoring gauge
- Pump Type: Two stage, through flow, thermally protected 1.4 H.P. (100-120VAC) and 1.8 H.P. (220-240 H.P.)., dual ball bearing vacuum blower.
- Maximum Capacity: 90 CFM (2500 LPM) at 29.92” HG at 68ºF at zero load
- Power Requirements: T8400M – 100-120VAC; 50/60Hz @ 8.8 amperes; single phase
- T8400ME – 200-240VAC; 50/60Hz @ 5,2 amperes; single phase
- Circuit Breaker Protection: 10 amperes
- Electrical Cord: All temperature, 3 wire, 16 gauge
- Thermal Overload Protection: Furnished as an integral part of the motor
- Flow Control
- Variable Speed up to full flow
- Exterior Housing: Heavy duty polypropylene
- Handle: Durable plastic/metal
- Dimensions: 9 ¾”L × 9 ½”W × 10 3/8”H
- (23,8 L × 24,1W × 26,4 cm H)
- Average dB: 87.3
- Weight: 8 lbs. 10 oz. (4,1 kg)
- Installation Category: Pollution Degree 2
- Operating Temperature: 40º - 104ºF (4º - 40ºC)
- Storage Temperature: 32º - 122ºF (0º - 50ºC)
- Particulate Holder: A durable plastic 4-inch (102 mm) diameter holder is standard
- Model FM50TA2880 Flow Monitoring Gauge
- Dual Scale: 10-70 CFM and 300-2000 LPM
- Model FM50TA2881 Flow Monitoring Gauge
- Dual Scale: 0.50-2.00 CMM and 300-2000 LPM
- Model HV-1SA or HV1SAP Adapter
- An adapter to reduce from 102 mm diameter to 4,65 cm FPT
- Model FJ3140P Combination Filter Holder
- Holds 3.4”D × 1.2”H charcoal filter and 4” (102 mm) diameter filter paper
- Model FJ2100 Filter Holder
- 20,3 × 25,4 cm particulate filter holder may be utilized directly on the unit
