Everfilt® - Model C-Series -High-Volume Carbon Media Filter Systems

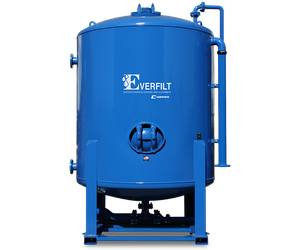

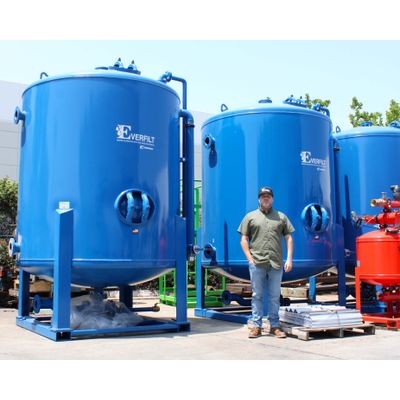

C-Series High-Volume Carbon Vessel Media Filters are completely carbon steel construction with one 4" flanged connection located on the top center of the tank, large top access manway with yoke style clamp, large side access manway with yoke style clamp for inspection purposes (size dependent on tank size and diameter), removable 304SS stainless steel wedge wire underdrains, heavy duty skids with D-rings for securing, carbon steel condensation drain line and carbon steel media fill line with cam-loc fitting for easy fill of desired media.Most popular related searches
carbon media filter
media filter
carbon filter
ion exchange resin
condensate draining
drain lining
drain line
ion exchange
filter media system
carbon filter vessel
FEATURES
DIA: 24", 36", 48", 54", 60", 72", 84"
SIDE SHELL HEIGHT: 48", 60", 72", 84"
PSI: 80 [84" - 24"]
GPM: 10 MIN - 3000+ MAX
FT2: 2ft.2in. [24"], 3ft.2in. [36"], 4ft.2in. [48"], 4.5ft.2in. [54"], 5ft.2in. [60"], 6ft.2in. [72"], 7ft.2in. [84"]
MEDIA: GAC / ion exchange resin / zeolite / organoclay
COATINGS: epoxy interior / 2-PART EPOXY EXTERIOR / uv-resist
UNDERDRAIN: removable 304ss wedge wire
