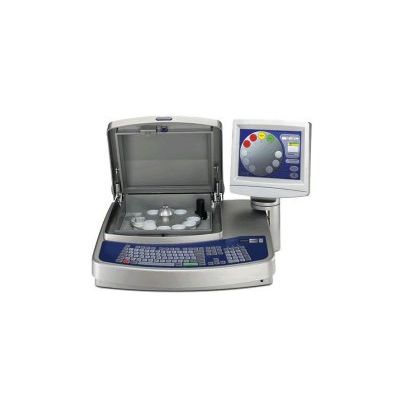

Hitachi High-Tech - Model X-Supreme8000 -Benchtop XRF Analyser
XRF analysis (X-ray fluorescence) with the highly flexible and powerful energy-dispersive X-ray fluorescence (EDXRF) spectrometer X-Supreme8000, LAB-X5000 and LAB-X3500 for quality assurance and process control requirements across a diverse range of applications; e.g. Petroleum & oil, wood treatment, minerals, mining, cosmetics, Cement, paper.
XRF analysis with the X-Supreme8000 for quality assurance and process control requirements.
Analysis can be performed on a wide range of sample types including solids, liquids, powders, pastes, films, etc., from ppm to high %, covering elements Na11 to U92 in the periodic table.
- Minimal or no sample preparation
- Unattended operation, and it can be used by non-laboratory operators
- FocusSD technology for speed, accuracy and long-term reliability
- Flexibility to perform qualitative, semi-quantitative and full quantitative analysis
- X-Supreme8000 complies with ASTM D4294, ISO8754, ISO20847 and ISO13032 test methods
Unattended operation to save you time and costs
- 10 position sample carousel for unattended operation
- Optional large trays for holding 51.5mm diameter steel ring for cement application, or 47mm diameter filter samples
Minimum bench space
- Integrated PC – compact
- Large, easy to read colour graphics for clarity and ease of use
- Touch screen display (optional) for simple and rapid data input
Rugged and robust design for harsh environments
- Sealed membrane keypad resistant to dust, oils, solvents etc.
- Secondary easy-to-change safety window for liquids/power analysis protects the instrument in the event of sample leakage
X-Supreme method Wizard
- Simple step-by-step setup
- Straightforward editing (click the image on the right to expand)
- Preloaded and customisable methods
Routine analysis (for production staff)
- Helpful hints on-screen for advice on good practice
- SMARTCHECK software allowing operation ‘by anyone’ (click the image on the right to expand)
- Easy to use software for production staff and powerful features for advanced operators
- Data can be automatically displayed, printed, stored locally or on a network drive
- Element range : Na-U
- Sample tray capacity : 10
- Membrane keypad with two-row display : MS Windows, optional touch screen
- Atmospheric compensation : No
- High-resolution detector : Yes
- Helium purge for improved analysis of Na - CI : Yes
- One touch to start measurement : No
- Automatic data storage : Yes
- Cloud-based data backup with LiveConnect : No
- Factory-loaded calibrations for selected applications : Yes
